REAR SEAT CUSHION TRIM REMOVAL

id091300301600

Caution

•  When removing the rear seat and taking it out of the vehicle or when entering the vehicle, the work must be performed by two or more people because contact with the surrounding areas of the vehicle could cause scratches and damage.

•  When performing the procedure with a rear seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  While pulling the ISOFIX holders at 4 locations in the directions of arrows (1) shown in the figure and avoiding the tabs, remove them in the direction of arrow (2).

a30zzw00006826

3.  Remove the ISOFIX plates at 4 locations in the direction of the arrow shown in the figure.

a30zzw00004755

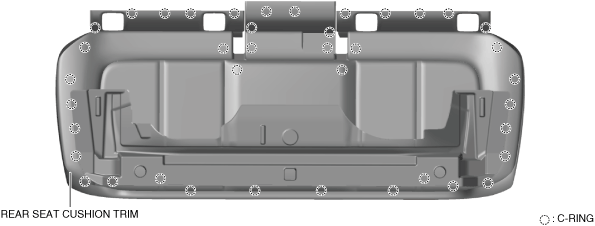

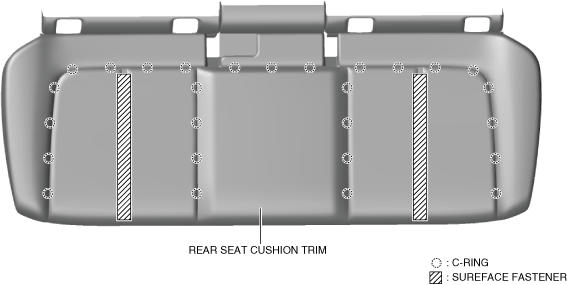

4.  Remove the C-rings and the surface fasteners shown in the figure.

Underside

a30zzw00002411

Surface

a30zzw00004560

Caution

•  If a C-ring is damaged when removing or installing the rear seat cushion trim and the rear seat cushion pad, it may not be possible to correctly install the rear seat cushion trim and the rear seat cushion pad. When removing or installing the rear seat cushion trim and the rear seat cushion pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

5.  Remove the rear seat cushion trim from the rear seat cushion pad.
