REAR SEAT CUSHION TRIM INSTALLATION

id091300303500

Caution

•  When removing the rear seat and taking it out of the vehicle or when entering the vehicle, the work must be performed by two or more people because contact with the surrounding areas of the vehicle could cause scratches and damage.

•  When performing the procedure with a rear seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

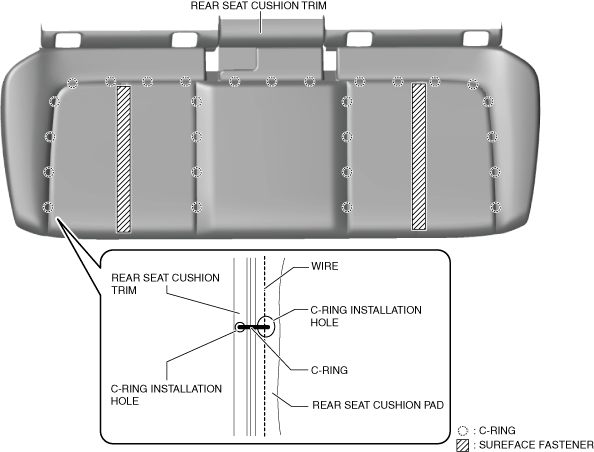

1.  Align the C-ring installation holes in the rear seat cushion trim with the same holes in the rear seat cushion pad and install the C-rings shown in the figure.

a30zzw00004561

Caution

•  If a C-ring is damaged when removing or installing the rear seat cushion trim and the rear seat cushion pad, it may not be possible to correctly install the rear seat cushion trim and the rear seat cushion pad. When removing or installing the rear seat cushion trim and the rear seat cushion pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Note

•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

am3zzw00036740

2.  Press the rear seat cushion pad inward while pulling the rear seat cushion trim outward.

am3zzw00036741

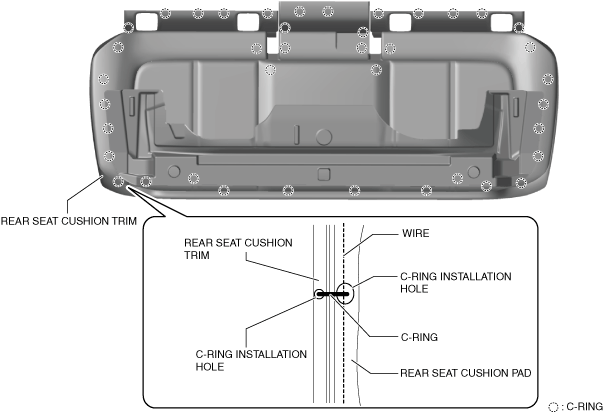

3.  Align the C-ring installation holes in the rear seat cushion trim with the same holes in the rear seat cushion pad and install the C-rings.

Caution

•  If a C-ring is damaged when removing or installing the rear seat cushion trim and the rear seat cushion pad, it may not be possible to correctly install the rear seat cushion trim and the rear seat cushion pad. When removing or installing the rear seat cushion trim and the rear seat cushion pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Note

•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

am3zzw00036740

a30zzw00002737

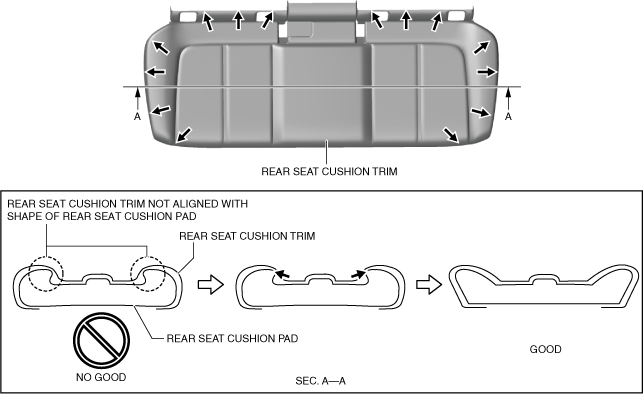

4.  Align the rear seat cushion trim with the shape of the rear seat cushion pad while pressing the rear seat cushion pad outward.

a30zzw00002738

5.  Install the ISOFIX plates at 4 locations to the position shown in the figure.

a30zzw00004756

6.  While moving the ISOFIX holders at 4 locations in the directions of arrows (1) shown in the figure, move them in the direction of arrow (2) and install them.

a30zzw00006826

7.  Install the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
