FRONT SEAT
id091300702700
Purpose, Function
• Front seat backs in which the suspension mats are integrated have been adopted to reduce the load on the occupants.
• Position memory seat have been adopted on the driver's seat. (With position memory system) (See
POSITION MEMORY SYSTEM.)
• 10WAY power seats have been adopted on the driver's seat. (With power seat system) (See
POWER SEAT SYSTEM.)
• A seat warmer system has been adopted on the front seat backs and front seat cushion. (With seat warmer system) (See
SEAT WARMER SYSTEM.)
• A power walk in system has been adopted to the driver’s seat. (With power seat system) (See
POWER SEAT SYSTEM.)
• A walk in system has been adopted to the front seats.
Construction
• To reduce impact force applied to the head of the occupant in a vehicle collision, the rigidity of the pole guides has been improved and the head restraints have been set so that they tilt forward.
• To control the backward lean of the front seat back when the occupant's body is pushed backward in a vehicle collision, the rigidity has been improved by placing the front seat lift mechanism on both sides of the front seat adjuster unit.

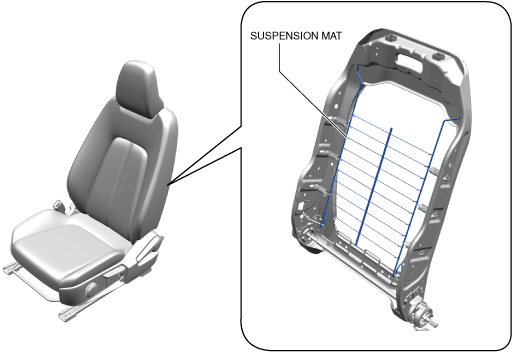

• Suspension mats have reduced the load on the occupant by supporting the occupant's back over a wide area and distributing the pressure.
Operation
Slide mechanism
-
• The front seats can be adjusted forward and rearward by operating the front seat slider lever or the slide switch (with power seat system).
Recliner mechanism
-
• The angle of the front seat backs can be adjusted forward and rearward by operating the front seat recliner lever or the recliner switch (with power seat system).
Tilt mechanism
-
• The height of the front seat cushion front side can be adjusted by operating the front seat tilt dial or the tilt switch (with power seat system).
Lift mechanism
-
• The height of the front seats can be adjusted by operating the front seat lift lever or the lift switch (with power seat system).
Lumbar support mechanism
-
• The bulge amount in the lumbar area of the front seat back can be adjusted by operating the lumbar support switch (with power seat system).
Walk in mechanism
-
• The front seat backs can be lowered and the front seats can be slid forward by operating the front seat strap. This allows occupants easy access to the rear seat.
Power walk in mechanism
-
Note
-
• The driver’s seat operates using the walk in switch only while there is no passenger on the driver’s seat.
-
• The angle of the front seat backs can be adjusted forward and rearward by operating the walk in switch (recliner switch).
• The front seats can be adjusted forward and rearward by operating the walk in switch (slide switch). This allows occupants easy access to the rear seat.
