LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION

id091400201700

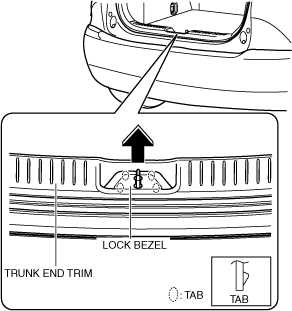

1.  Pull the lock bezel in the direction of the arrow shown in the figure and detach the lock bezel tabs from the trunk end trim.

a30zzw00006955

2.  Remove the lock bezel.

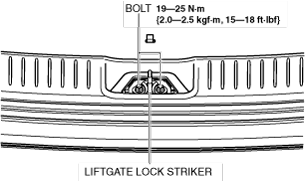

3.  Remove the bolts.

a30zzw00002497

4.  Remove the liftgate lock striker.

5.  Install in the reverse order of removal.

6.  Adjust the liftgate. (See LIFTGATE ADJUSTMENT.)
