FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400700000


L.H.D.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

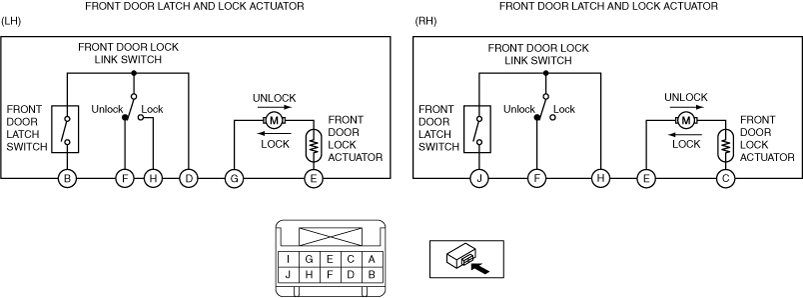

3.  Apply lead-acid battery positive voltage and connect the ground to the front door and lock actuator terminals as indicated in the table below and verify the operation condition.

ac30zw00003949

Front door lock actuator

Lead-acid battery terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

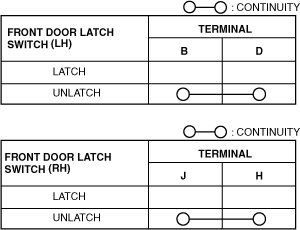

4.  Verify that the continuity is as indicated in the table.

a30zzw00000773

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

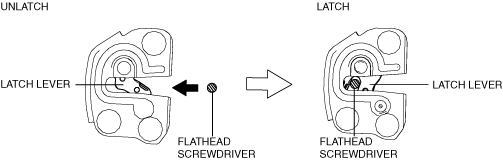

Note
•  When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

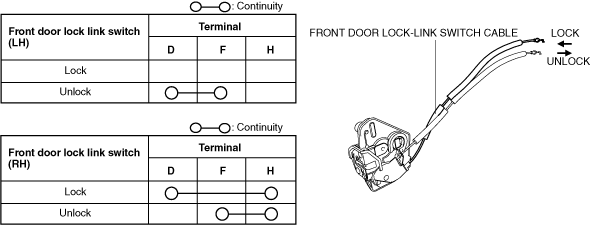

5.  When the front door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

a30zzw00000774

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)


R.H.D.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  Apply lead-acid battery positive voltage and connect the ground to the front door and lock actuator terminals as indicated in the table below and verify the operation condition.

a30zzw00006846

Front door lock actuator (Without double locking system)

Front door lock actuator

Lead-acid battery terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock

Front door lock actuator (With double locking system)

Front door lock actuator

Lead-acid battery terminal

Ground terminal

Operation
RH
E
C
Lock→Unlock
C
E
Unlock→Lock
G
E
Lock→Double locking
E
G
Double locking→Lock

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

am3zzw00030233

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Note
•  When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

5.  When the front door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3zzw00030378

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
