DEFLECTOR REMOVAL/INSTALLATION

id091600046400

Front Deflector

1.  Lift up the vehicle.

2.  Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

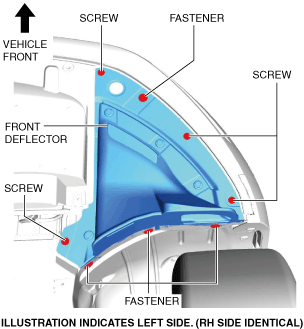

3.  Remove the fasteners and screws.

a30zzw00004471

4.  Remove the front deflector.

5.  Install in the reverse order of removal.

Rear Deflector

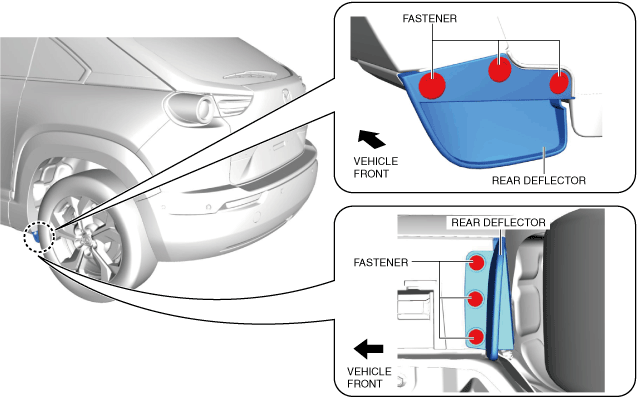

1.  Remove the fasteners.

a30zzw00004357

2.  Remove the rear deflector.

3.  Install in the reverse order of removal.
