FRONT SIDE TRIM REMOVAL/INSTALLATION

id091700049600

1.  Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION.)

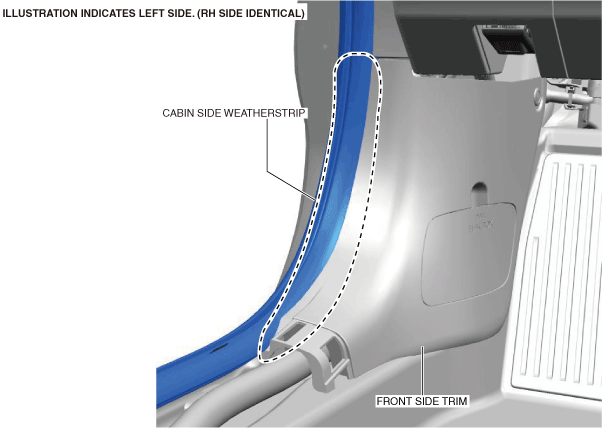

2.  Partially peel back the cabin side weatherstrip.

a30zzw00005987

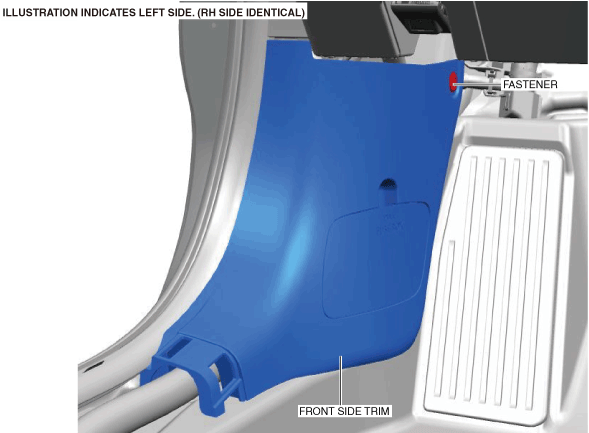

3.  Remove the fastener.

a30zzw00005988

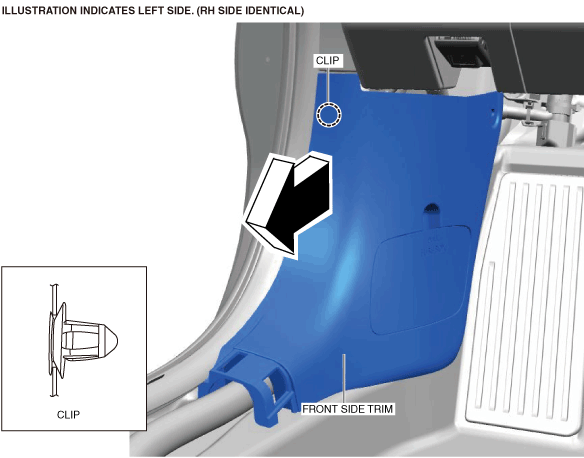

4.  Move the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.

a30zzw00000072

5.  Install in the reverse order of removal.
