HEADLIGHT AIMING [(E)]
id0918007004x2
1. Empty the vehicle except for the jack and vehicle tools.
2. Adjust the tire pressure to the standard.
3. Move the vehicle to level ground.
4. Sit on the driver-side seat alone.
5. Position the vehicle to face directly against the wall.
6. Move the vehicle to the position shown in the figure.
a30zzw00002966
|
7. Measure the height at the center point of the headlight.
a30zzw00002967
|
8. Create an adjustment screen as shown in the figure.
azzjjb00000489
|

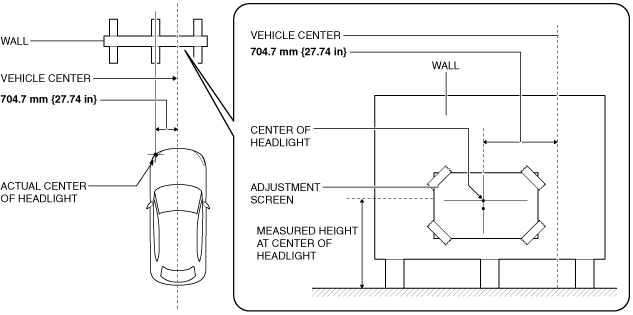

9. Attach it to the wall so that the center point of the headlight for adjusting the adjustment screen is aligned with the center point of the adjustment screen.
a30zzw00002968
|
10. Set a partition in front of the headlight which is not being adjusted to block the light.
11. Switch the main power ON (READY on).
12. Turn on the headlight low beams.
azzjjb00000491
|

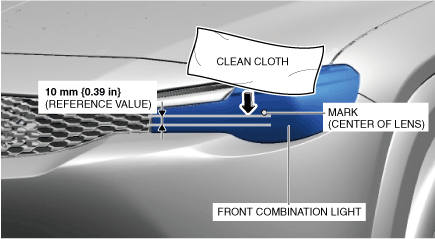

13. Cover the upper part of the headlight with a clean cloth so that the brightness border line becomes transparent.
a30zzw00002969
|
14. Verify if the actual elbow point of the headlight is at the elbow point position indicated on the adjustment screen.
a30zzw00002970
|

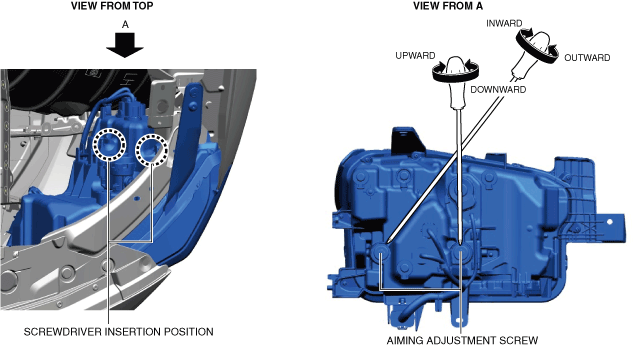

Up/down/in/out adjustment (with adaptive LED headlights)
a30zzw00002971
|

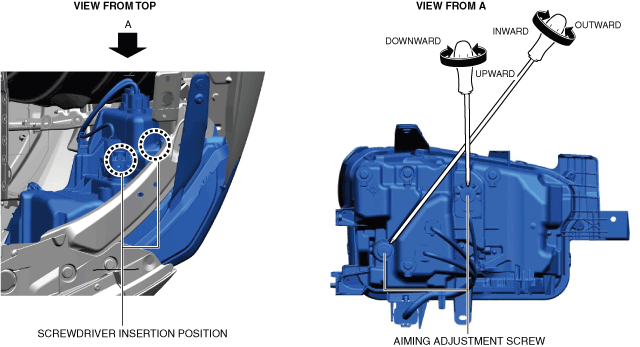

Up/down/in/out adjustment (without adaptive LED headlights)
a30zzw00002972
|
