LEAVING HOME LIGHT
id091800707300
Outline
• When the door unlock operation is performed using the remote transmitter with the main power switched OFF and the light switch in the HEAD, AUTO or TNS (parking lights) position*1, the leaving home light turns on the headlights LO and TNS (parking lights) for a specified time.
• When approaching the vehicle in a parking lot where the area surrounding the vehicle is dark, the system is used for assuring visibility at the front of the vehicle by turning the headlights LO and TNS (parking lights) on.
*1 :For the headlight LO and TNS (parking lights) illumination conditions with the main power switched OFF, refer to the [EXTERIOR LIGHTING SYSTEM].
Function
Leaving home light off timer function
-
• When the body control module (BCM) receives a door unlock request signal from the remote transmitter with the light switch in the TNS (parking lights), AUTO or HEAD position and the main power switched OFF, it turns the headlights LO and the TNS (parking lights) on and operates the leaving home light off timer.
• When the time on the leaving home light off timer (30 s) has elapsed, the body control module (BCM) turns the headlights LO and the TNS (parking lights) off.*2
• When the body control module (BCM) receives a door lock request signal from the remote transmitter during leaving home light off timer operation, it turns the headlights LO and the TNS (parking lights) off.*2
*2 :If the light switch is in the TNS (parking lights) position, the TNS (parking lights) is not turned off.
Personalization features
-
• The leaving home light can be switched between operable and inoperable (initial setting is [Enable]). For details on the personalization features, refer to the [PERSONALIZATION FEATURES] in the workshop manual.
Structure/Construction

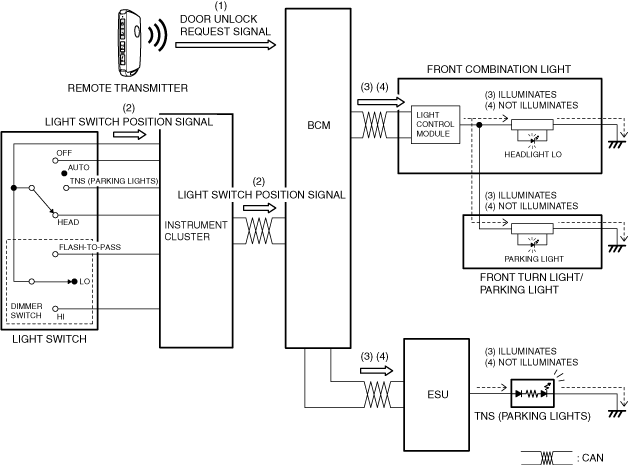

System structure

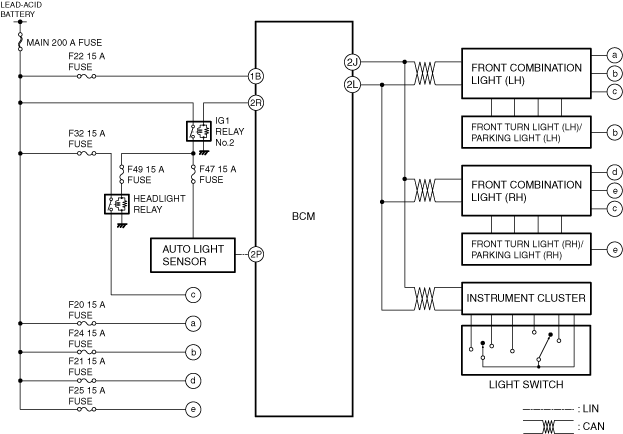

System wiring diagram

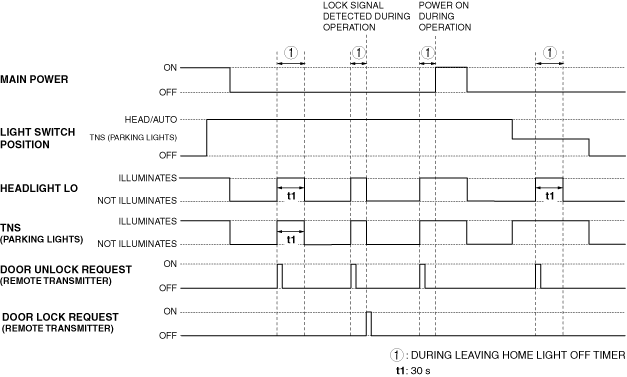

Timing chart
Operation
• The leaving home light function operates when all of the following conditions are met.
Leaving home light operation conditions
-
― Main power is switched OFF
― Light switch at TNS (parking lights), AUTO, or HEAD position
― Door unlock request signal is received by remote transmitter
1. When the unlock button on the remote transmitter is pressed, the body control module (BCM) detects (1) a door unlock request signal. For details on the door lock/unlock operation using the remote transmitter, refer to the [KEYLESS ENTRY SYSTEM] or [ADVANCED KEYLESS ENTRY SYSTEM]. (See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
2. The instrument cluster sends (2) a light switch position signal to the body control module (BCM) via CAN communication.
3. When the operation conditions are met, the body control module (BCM) turns the TNS (parking lights) and headlights LO on (3).
4. After the leaving home light off timer has elapsed, the body control module (BCM) turns the TNS (parking lights) and headlights LO off (4).*3
*3 :If the light switch is in the TNS (parking lights) position, the TNS (parking lights) is not turned off.
