WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION

id091900700800

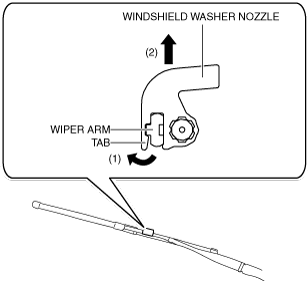

1.  While pressing the windshield washer nozzle tabs in the direction of arrows (1) shown in the figure, remove the windshield washer nozzle in the direction of arrow (2).

a30zzw00003849

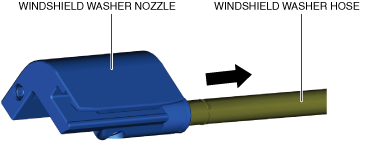

2.  Disconnect the windshield washer hose from the windshield washer nozzle.

a30zzw00003850

3.  Remove the windshield washer nozzle.

4.  Install in the reverse order of removal.

5.  Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT.)
