CENTER DISPLAY REMOVAL/INSTALLATION

id092000700400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

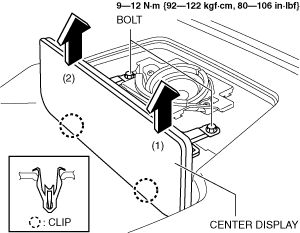

3.  Remove the bolts.

a30zzw00004788

4.  Move the center display in the order of arrow (1) and arrow (2) as shown in the figure to detach the clips.

5.  Remove the center display.

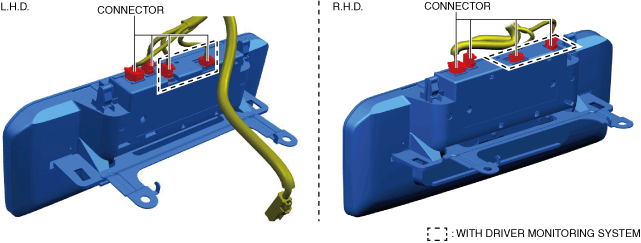

6.  Disconnect the connectors.

a30zzw00006628

7.  Install in the reverse order of removal.
