AUDIO AMPLIFIER REMOVAL/INSTALLATION [(E)]

id0920007010x2

Warning

•  Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling a seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

1.  Remove the installation bolt on the front seat. (RH) (With power seat system) (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

2.  Switch the main power OFF.

3.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

5.  Remove the fasteners.

a30zzw00000184

6.  Remove the audio amplifier cover.

7.  Remove the nuts.

a30zzw00006629

8.  Remove the audio amplifier.

9.  When replacing the bracket, perform the following procedure.

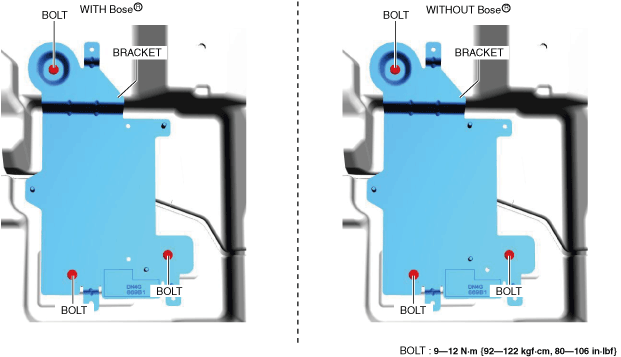

(1)  Remove the bolts.

a30zzw00006630

(2)  Remove the bracket.

10.  Install in the reverse order of removal.
