REAR DOOR SPEAKER REMOVAL/INSTALLATION

id092000701200

Caution

•  If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION.)

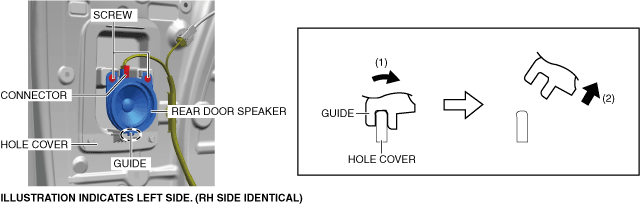

3.  Disconnect the connector.

a30zzw00006010

4.  Remove the screws.

5.  Move the rear door speaker in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guide.

6.  Install in the reverse order of removal.
