BASS-BOX REMOVAL/INSTALLATION

id092000701600

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

3.  Remove the rear trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

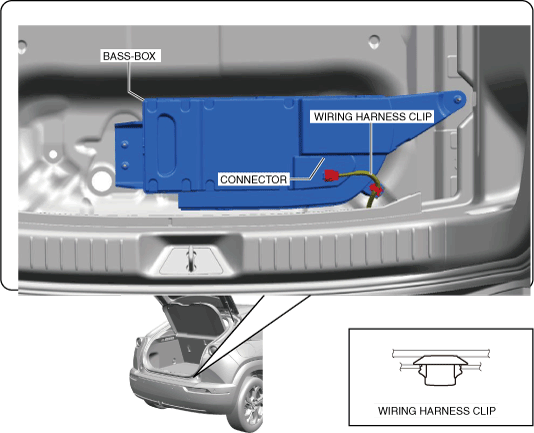

4.  Disconnect the connector.

a30zzw00000194

5.  Remove the wiring harness clip.

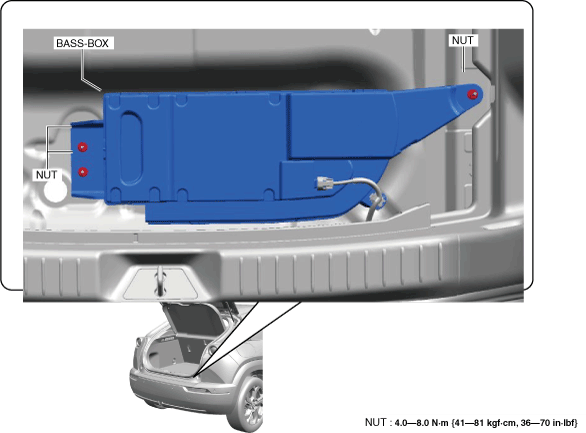

6.  Remove the nuts.

a30zzw00000195

7.  Remove the bass box.

8.  Install in the reverse order of removal.
