USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

id092000702500

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front console upper panel. (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

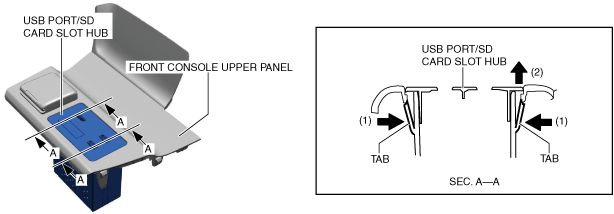

3.  Press the USB port/SD card slot hub in the direction of arrow (2) while pressing the tabs in the direction of arrow (1) shown in the figure, and remove it from the console upper panel.

a30zzw00000386

4.  Remove the USB port/SD card slot hub.

5.  Install in the reverse order of removal.
