STEERING SWITCH INSPECTION

id092000703500

1.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

3.  Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.

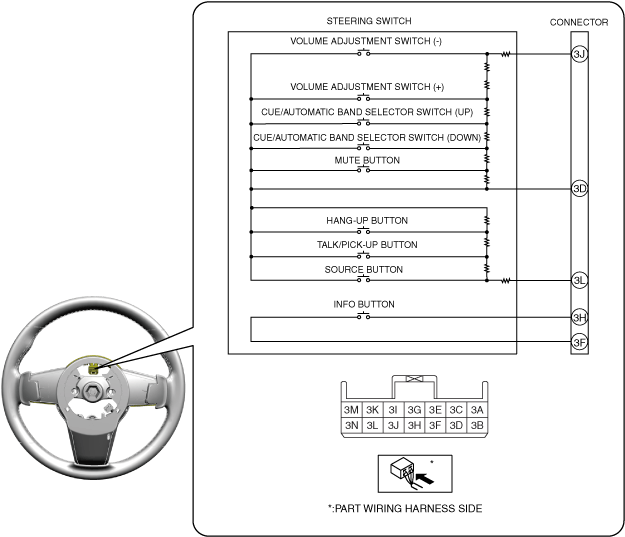

a30zzw00001753

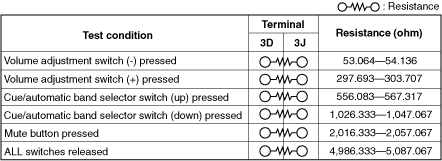

a30zzw00001754

a30zzw00001755

a30zzw00001756

•  If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

4.  Apply lead-acid battery positive voltage to steering switch terminal 3N, and connect terminal 3B to ground.

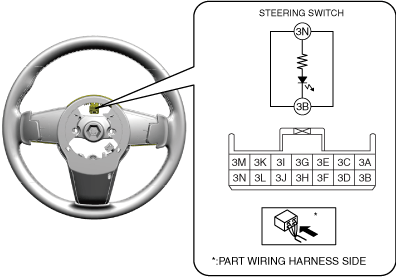

a30zzw00001757

5.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
