AC POWER OUTLET REMOVAL/INSTALLATION

id092100701100

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front console upper panel. (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

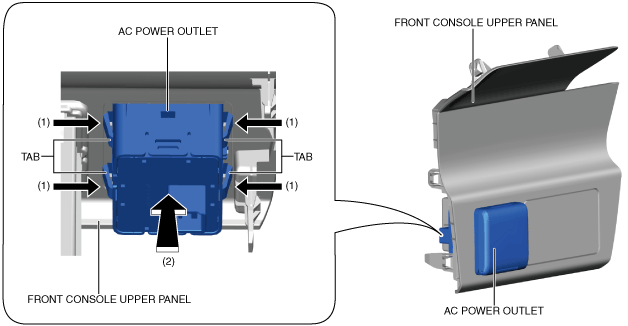

3.  While pressing the tabs of the AC power outlet in the directions of arrows (1) shown in the figure, press out the AC power outlet in the direction of arrow (2) shown in the figure and detach the tabs of the AC power outlet from the front console upper panel.

a30zzw00003976

4.  Remove the AC power outlet.

5.  Install in the reverse order of removal.
