EMERGENCY CALL UNIT [(E)]
id0922007056x2
Purpose
• The emergency call unit controls the emergency call system based on a collision detection signal from the sophisticated airbag sensor (SAS) control module or emergency call switch operation signal.
Functions
Power supply switching function
-
• If the power supply from the lead-acid battery is cut off, the emergency call unit switches the power supply circuit to the built-in battery.
-
Note
-
• It is necessary to replace the built-in battery. For details, refer to the [EMERGENCY CALL UNIT BATTERY REMOVAL/INSTALLATION] in the workshop manual.
Emergency call operation status notification function
-
• The emergency call unit notifies the user of the emergency call operation status using a notification sound.
• The notification sound is activated in the pattern shown in the following figure.
|
Status
|
Notification sound pattern
|
|
Malfunction
|
 |
|
Dialing to call center
|
Call audio
|
|
Voice call starts
|
 |
|
Connection failed
|
 |
On-board diagnostic function
-
• The emergency call unit is equipped with an on-board diagnosis function which records DTCs in the event of a malfunction.
Structure/Construction

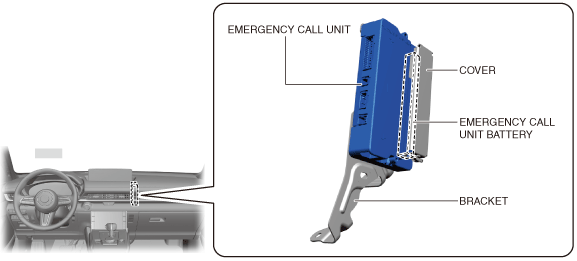

• The emergency call unit is located inside the dashboard.
Operation
