EMERGENCY CALL SYSTEM [(E)]

id0922007055x2

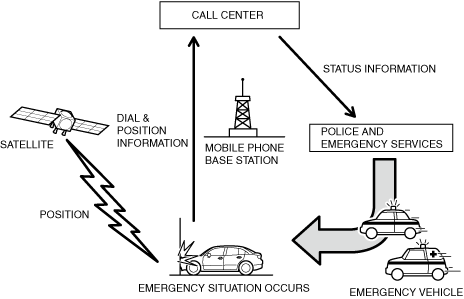

Outline

•  The emergency call system is a system which reports the location of an accident occurring with the vehicle and vehicle information to a call center to assist in a prompt emergency rescue in an emergency situation such as an accident or sudden illness occurring while driving.

a30zzn00000686

Functions

Note

•  Available features differ depending on the country.

Auto call function

•  The emergency call unit makes a call automatically to a call center to report an emergency if an accident occurs with the vehicle.

Manual call function

•  The emergency call unit makes the call to a call center to report an emergency based on the operation of the emergency call unit switch by the user.

Audio speaker mute function

•  The emergency call unit stops audio output so that it does not interfere with an on-going voice call with the call center.

System conditions notification function

•  The emergency call system notifies occupants of the system operation status using the illumination/flashing pattern of the emergency call switch indicator and the notification sound output from the emergency call speaker.

Status	Indicator illumination/flashing pattern*1		Notification sound*2
	Green	Red
Normal	―	―	―
Malfunction	―	ON	ON
Diagnosis	ON	ON	―
Dialing call center	Flash	―	Call audio
While sending accident/vehicle information	Flash	―	―
Voice call starts	ON	―	ON
During voice call	ON	―	―
Connection failed	Flash	ON	ON
Waiting for call back	Flash	―	―

Remote Control

Remote Charging

•  Remote charging start and finish can be performed using the MyMazda App.

Remote Air Conditioning

•  The air conditioner system can be operated and stopped remotely using the MyMazda App. Additionally, defogging operation can also be specified.

―  The air conditioner system operated by the remote air conditioning stops automatically when a certain period of time has elapsed since the system was operated.

Remote Door Lock

•  Locks the doors remotely using the MyMazda.

Send Route to Car

•  Can set the position information specified by the MyMazda to the navigation equipped on the vehicle.

Vehicle Status Alert

•  Informs the MyMazda of the following.

―  Forgetting to close the doors, liftgate or hood

―  Forgetting to lock the doors

―  Forgetting to turn off the hazard warning lights

Vehicle Status

•  Can confirm the following vehicle information using the MyMazda.

―  Remaining battery charge level

―  Remaining distance-to-full discharge

―  Battery heater operation status

―  Battery heater operation mode

―  Charge time

―  Next scheduled charging date and time

―  In-vehicle temperature

―  Climate control set temperature and the climate control on/off status

―  Front window defroster status

―  Rear window defroster status

―  Odometer display^*

―  Tire pressure^*

―  Doors are locked/unlocked and open/closed

―  Liftgate/hood are open/closed

―  Hazard warning lights status

Vehicle Health Report

•  Can confirm the following vehicle information using the MyMazda.

―  Next maintenance date^*

―  Tire pressure^*

―  Lighting system^*

―  Tire pressure battery^*

Security Alert

•  Informs the MyMazda of the theft-deterrent system alarm operation history.

Vehicle Finder

•  Can confirm the position where the vehicle is stopped using the MyMazda.

Roadside Assistance

•  Sends the malfunction detected by the vehicle to the Mazda server via the Internet.

Primary Driver/Secondary Driver

•  By setting the relationship between the primary driver and secondary driver to the user account, one vehicle can be shared by multiple people.

Communication Restricted Mode

•  Temporarily inhibits all of the following using the connectivity master unit (CMU).

―  Remote operations by MyMazda

―  Notifications sent to MyMazda

Software Update

•  Updates the CMU software remotely.

Communication condition display function

•  Displays the communication conditions of the vehicle and Smartphone on the center display.

Name	Display	Content
Display of number of unread messages		Indicates the number of unread messages on the notification list.
Bluetooth® connection status display		Indicates that the Bluetooth® device is not connected to the CMU.
		Indicates that the Bluetooth® device is connected to the CMU.
Connection device battery status display		Indicates the battery status obtained from the connection device.
Connection device radio reception status display		Indicates that the connection device is not connected to a roaming network and the radio wave strength is out of range.
		Indicates that the connection device is connected to a roaming network and the radio wave strength is out of range.
		Indicates the radio wave strength level and that the connection device is not connected to a roaming network.
		Indicates the radio wave strength level and that the connection device is connected to a roaming network.
Radio reception status display for emergency call unit		Indicates that the radio wave strength of the emergency call unit is out of range.
		Indicates that a problem is occurring with the USB connection between the emergency call system and the CMU.
		Indicates the reception status of the radio wave strength of the emergency call unit.
		Indicates that the emergency call unit is communicating with the server.
		Indicates that the emergency call system is determining whether the radio waves are in/out of range.
		Indicates that the user has disabled Connected Services.

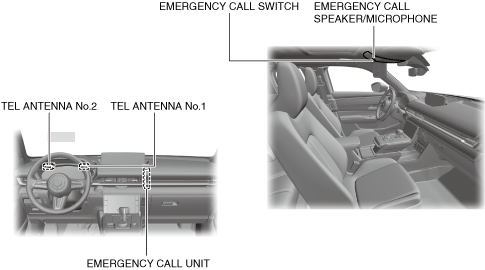

Structural View

a30zzn00000687

Operation

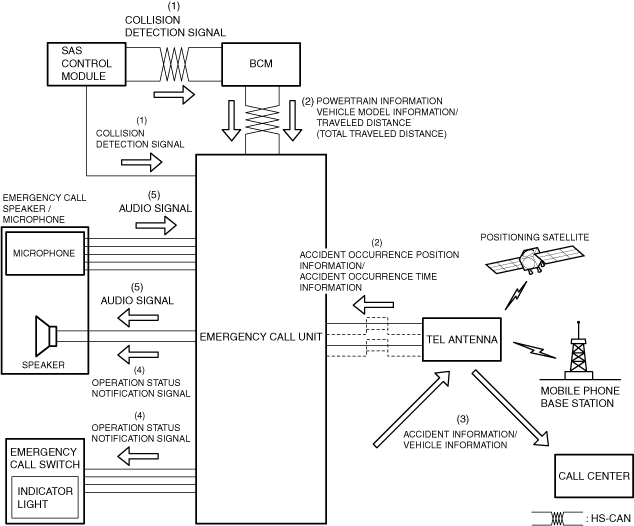

Auto call operation

1.  If the vehicle is involved in a collision, the sophisticated airbag sensor (SAS) control module sends (1) a collision detection signal to the emergency call unit via CAN communication and hard wire.

2.  When the collision detection signal is received from the sophisticated airbag sensor (SAS) control module, the emergency call unit detects the following information based on a signal (2) from the related module.

•  Vehicle/accident information

―  Accident occurrence position information and accident occurrence time information received from TEL antenna

―  Vehicle model information and traveled distance (total traveled distance) received from body control module (BCM)

―  Powertrain information received from body control module (BCM)

3.  The emergency call unit sends (3) accident information/vehicle information to a call center via TEL antenna. In addition, the emergency call unit sends (4) an operation status notification signal to the emergency call speaker and the emergency call switch, and controls the activation of the notification sound and the illumination/flashing of the indicator.

4.  When the transmission of the accident information/vehicle information to the call center is completed or approx. 20 s have elapsed after starting to send the accident information/vehicle information, the emergency call unit starts the voice call (5) with the call center via the emergency call speaker/microphone.

a30zzn00001132

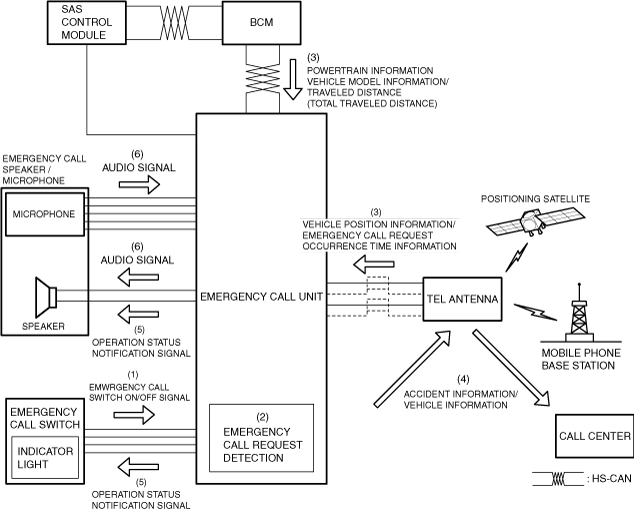

Manual call operation

1.  When the emergency call switch OFF signal is received (1) after receiving the emergency call switch ON signal for approx. 1 s or more, the emergency call unit detects (2) an emergency call request from the user.

2.  When the emergency call request is detected, the emergency call unit detects the following information based on a signal (3) from the related module.

•  Vehicle information

―  Vehicle position information and emergency call request occurrence time information received from TEL antenna

―  Vehicle model information and traveled distance (total traveled distance) received from body control module (BCM)

―  Powertrain information received from body control module (BCM)

3.  The emergency call unit sends (4) accident information/vehicle information to a call center via TEL antenna. In addition, the emergency call unit sends (5) an operation status notification signal to the emergency call speaker and the emergency call switch, and controls activation of the notification sound and the illumination/flashing of the indicator.

4.  When the transmission of the vehicle information to the call center is completed or approx. 20 s have elapsed after starting to send the vehicle information, the emergency call unit starts the voice call (6) with the call center via the emergency call speaker/microphone.

a30zzn00001133

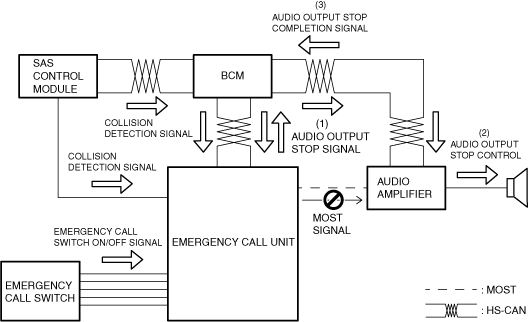

Audio speaker mute operation

1.  When a collision detection signal is received or an emergency call request is detected, the emergency call unit sends (1) an audio output stop signal to the audio amplifier via CAN communication.

2.  When the audio output stop signal is received, the connectivity master unit stops (2) audio output.

3.  When the audio output is stopped, the audio amplifier sends an audio output stop completion signal (3) to the emergency call unit via CAN communication.

4.  When the audio output stop completion signal is received, the emergency call unit detects that stopping of the audio output is completed.

Note

•  If the audio output stop completion signal cannot be received, the emergency call unit cuts off the most circuit and forcefully stops audio output.

5.  The emergency call unit restores audio output after a voice call is finished.

a30zzn00001134

Remote Control Operation

•  When all of the following conditions are met, remote operations using the emergency call system become available.

Remote Charging

―  Selector lever is in P position

―  High voltage battery is not fully charged

―  Charge connector is correctly connected to vehicle

―  Not during high voltage battery charging

Remote Air Conditioning

―  Main power is switched OFF

―  All doors are closed

―  Liftgate is closed

―  Remaining high voltage battery charge amount is sufficient

Remote Door Lock

―  Main power is switched OFF

―  All doors are closed

―  Liftgate is closed

―  There is programmed key outside vehicle

―  All doors or liftgate have not been opened/closed over the period when the Smartphone performs locking.

―  Pacemaker setting is disabled

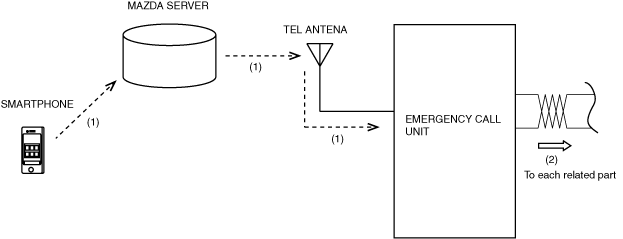

1.  When the MyMazda is operated, a signal according to the operation content is sent (1) to the emergency call unit.

2.  When the emergency call unit receives the signal, an operation request signal according to the operation content is sent (2) to each related part.

3.  Each related part operates.

a30zzn00001203
