EMERGENCY CALL SPEAKER/MICROPHONE [(E)]


id0922007058x2


Purpose

•  Converts the audio signal from the emergency call unit to sound.

Functions

•  Converts the voice (voice commands) spoken into the microphone by the user to an electric signal and sends the emergency call unit.

Structure/Construction

•  Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted.

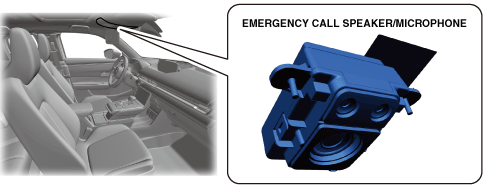

•  A voice recognition microphone is located next to the front map light to reduce noise caused by road noise while the vehicle is being driven and air blown by the air conditioner.
a30zzn00000696

Operation

•  For the emergency call speaker/microphone operation, refer to the [EMERGENCY CALL SYSTEM]. (See EMERGENCY CALL SYSTEM [(E)].)
