TEL ANTENNA [(E)]

id0922007062x2


Purpose/Function

•  When the TEL antenna sends vehicle position information to a call center via the mobile phone base station, it makes a voice call at the same time.
•  The TEL antenna receives the signal sent from the GPS satellite and sends the position information to the emergency call unit and connectivity master unit.
Note
•  GPS (Global Positioning System) was developed by the Pentagon (U.S.A.) as an object locating system using satellites. The GPS antenna receives signals from several of the satellites orbiting at an altitude of approx. 21, 000 km {13,049 mile} to detect the current position of the vehicle.

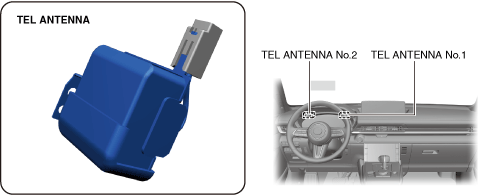

Structure/Construction

a30zzn00000703

Operation

•  For the TEL antenna operation, refer to the [EMERGENCY CALL SYSTEM] or [ENTERTAINMENT SYSTEM] in the workshop manual. (See EMERGENCY CALL SYSTEM [(E)].)
