WARNING/INDICATION/ALARM [(E)]

id0922007067x2

Master Warning Indication

Purpose

•  The master warning indication warns the driver that any of the following malfunctions is occurring.

―  CAN communication error

―  EV system error

―  Global central configuration error

―  Approaching vehicle audible system error

―  Notification and warning sound error

―  Push button start system error

―  Brake override system error

―  Wiper system error

Functions

•  The instrument cluster controls the master warning indication based on the error signal sent from the related module.

Structure/Construction

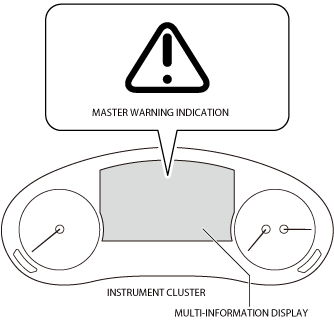

•  The master warning indication is displayed in the multi-information display of the instrument cluster.

a30zzn00000709

•  A warning message is displayed in the multi-information display simultaneously with the master warning indication. For the message content and verification method, refer to the [MULTI-INFORMATION DISPLAY]. (See MULTI-INFORMATION DISPLAY [(E)].)

Operation

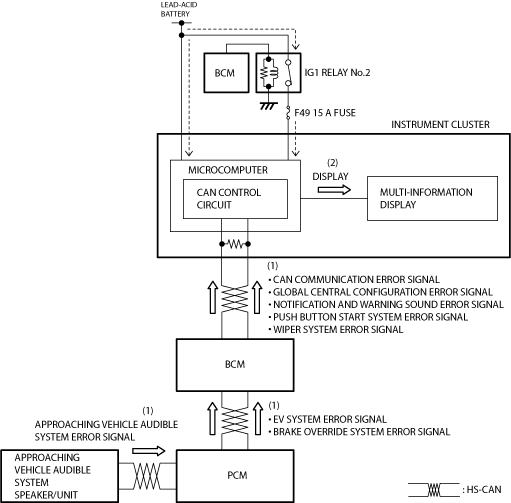

1.  When the instrument cluster receives (1) each error signal via CAN communication, it displays (2) the master warning indication in the multi-information display.

a30zzn00000710

Seat Belt Warning Light

Purpose

•  The seat belt warning light warns the driver that a seat belt is not fastened.

Functions

•  The instrument cluster flashes/turns on the seat belt warning light based on the following signals:

Signal name	Sending module/part name	Communication method
Vehicle speed signal	Electronically controlled brake unit	HS-CAN
Driver's side buckle switch signal	Dash-electrical supply unit
Passenger's side buckle switch signal	Sophisticated airbag sensor (SAS) control module
Occupancy sensor signal
Rear buckle switch signal	ESU

•  The driver's side/passenger's side seat belt warning light has a warning for when the vehicle is stopped, while the vehicle is being driven, and subsequent warnings while the vehicle is being driven.

Warning while vehicle is stopped

•  When all of the following conditions are met, the light turns on.

―  Main power is switched ON (READY off or on)

―  Driver's side/passenger's side buckle switch on signal (seat belt unfastened) is detected

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's side seat belt warning light only)

Warning while vehicle is driven

•  When all of the following conditions are met, the light flashes/turns on.

―  Vehicle speed is 20 km/h {12 mph} or more

―  Driver's side/passenger's side buckle switch on signal (seat belt unfastened) is detected

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's side seat belt warning light only)

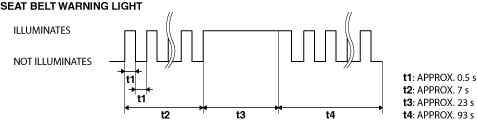

•  The warning while the vehicle is being driven flashes/turns on in the pattern shown in the figure.

a30zzn00000711

Subsequent warning while vehicle is driven

•  When all of the following conditions are met, the light flashes/turns on.

―  Vehicle speed is 20 km/h {12 mph} or more

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's side seat belt warning light only)

―  After warning while vehicle is being driven operates, buckle switch off signal (seat belt fastened) to on signal (seat belt unfastened) is detected

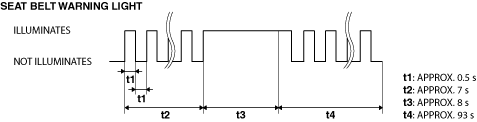

•  The subsequent warning while vehicle is driven flashes/turns on in the pattern shown in the figure.

a30zzn00000712

Initial warning

•  When all of the following conditions are met, the light turns on.

―  Power switched from OFF to ON is detected

―  Rear buckle switch on (seat belt unfastened) is detected

Normal warning

•  When all of the following conditions are met, the light turns on.

―  Rear door latch switch off (rear door closed) is detected

―  After rear buckle switch off signal (seat belt fastened) to rear buckle switch on signal (seat belt unfastened) is detected

Subsequent warning while vehicle is driven

•  After rear buckle switch off signal (seat belt fastened) to rear buckle switch on signal (seat belt unfastened) is detected, vehicle speed of approx. 20 km/h or more is detected

Initial indication

•  When all of the following conditions are met, the light turns on.

―  Power switched from OFF to ON is detected

―  Rear buckle switch off (seat belt fastened) is detected

Normal indication

•  When all of the following conditions are met, the light turns on.

―  Rear door latch switch off (rear door closed) is detected

―  After rear buckle switch on signal (seat belt unfastened) to rear buckle switch off signal (seat belt fastened) is detected

Structure/Construction

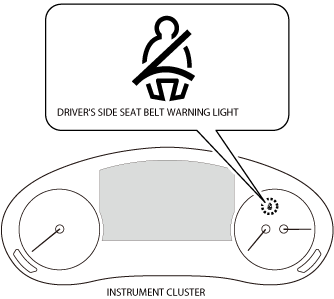

•  The driver's side seat belt warning light is built into the instrument cluster.

a30zzn00000713

•  The passenger's side seat belt warning light is built into the indicator unit. For details on the passenger's side seat belt warning light, refer to [INDICATOR UNIT]. (See INDICATOR UNIT [(E)].)

•  The rear seat belt warning light is built into the indicator unit. For details on the rear seat belt warning light, refer to [INDICATOR UNIT].

Operation

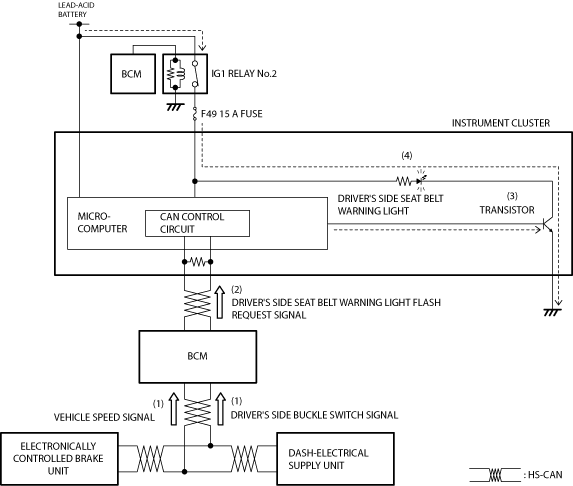

Driver's side seat belt warning light

1.  When the body control module (BCM) receives (1) a vehicle speed signal from the electronically controlled brake unit and a driver's side buckle switch signal from the dash-electrical supply unit via CAN communication while the main power is switched ON (READY off or on), it sends (2) a driver’s side seat belt warning light flash request signal to the instrument cluster.

2.  When the instrument cluster receives a driver’s side seat belt warning light flash request signal from the body control module (BCM), it turns the transistor on (3) intermittently for flashing and continuously for illumination.

3.  When the transistor turns on intermittently, the driver’s side seat belt warning light flashes (4).

a30zzn00000714

Passenger's side seat belt warning light

•  For the passenger's side seat belt warning light operation, refer to [INDICATOR UNIT]. (See INDICATOR UNIT [(E)].)

Rear seat belt warning light

•  For the rear seat belt warning light operation, refer to [INDICATOR UNIT].

Door-ajar Warning Light/Door-ajar Warning Indication/Liftgate-ajar Warning Indication

Purpose

•  The door-ajar warning light warns the driver that any door or the liftgate is open.

•  The door-ajar warning indication notifies the driver that any door is open.

•  The liftgate-ajar warning indication notifies the driver that the liftgate is open.

Functions

•  When the instrument cluster receives any of the following signals sent from the electrical supply unit (ESU) via the CAN communication, it turns on/displays the door-ajar warning light/door-ajar warning indication/liftgate-ajar warning indication.

―  Door latch switch on (door open) signal

―  Liftgate latch switch on (liftgate open) signal

Structure/Construction

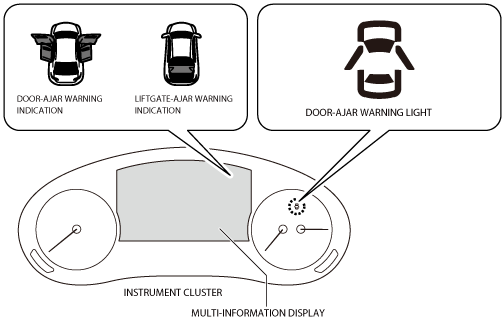

•  The door-ajar warning light is built into the instrument cluster.

•  The door-ajar warning indication/liftgate-ajar warning indication is displayed in the multi-information display of the instrument cluster.

a30zzn00000715

Operation

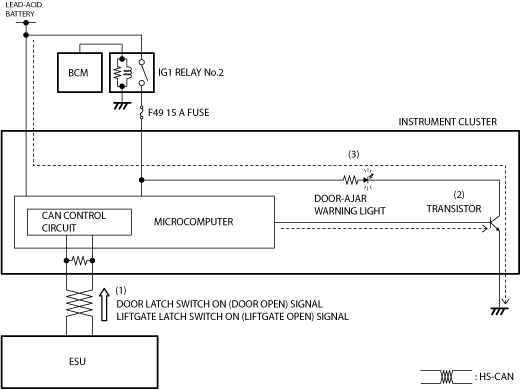

Door-ajar warning light

1.  The instrument cluster receives (1) a door latch switch on (door open) signal or liftgate latch switch on (liftgate open) signal from the electrical supply unit (ESU) via CAN communication, it turns on (2) the transistor.

2.  When the transistor turns on, a ground circuit with the door-ajar warning light is established and the door-ajar warning light turns on (3).

a30zzn00000716

Door-ajar warning indication/Liftgate-ajar warning indication

1.  The instrument cluster receives (1) a door latch switch on (door open) signal or liftgate latch switch on (liftgate open) signal from the electrical supply unit (ESU) via CAN communication, it displays (2) the door-ajar warning indication/liftgate-ajar warning indication in the multi-information display.

a30zzn00000717

Lights-on Reminder Warning Alarm

Purpose

•  The lights-on reminder warning alarm warns the driver that the TNS (parking lights) and headlights are not turned off.

Functions

•  The body control module (BCM) controls the lights-on reminder warning alarm based on the following signals:

Signal name	Sending module/part name	Communication method
TNS (parking lights) signal	Instrument cluster	HS-CAN
Driver's side front door latch switch on (door open) signal	Electrical supply unit (ESU)

•  If the main power is switched OFF or ACC when all the above vehicle condition signals are received, the body control module (BCM) operates the lights-on reminder alarm.

•  The lights-on reminder warning alarm is activated in the pattern shown in the figure.

a30zzn00000718

Structure/Construction

•  The lights-on reminder warning alarm is activated using the notification and warning speaker (front).

Operation

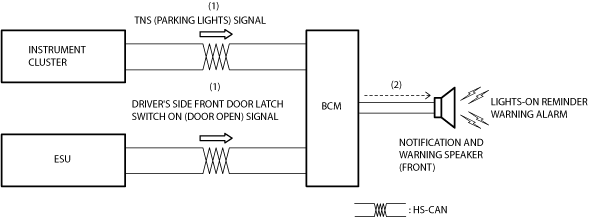

1.  When the body control module (BCM) receives (1) a TNS (parking lights) signal from the instrument cluster and a driver's side front door latch switch on (door open) signal from the electrical supply unit (ESU) via CAN communication while the main power is switched ACC or OFF, it sounds (2) the lights-on reminder warning alarm.

a30zzn00000719

Turn and Hazard Indicator Alarm

Purpose

•  The turn and hazard indicator alarm notifies the driver that a turn light or the hazard warning lights are flashing.

Functions

•  When the body control module (BCM) receives a turn switch signal sent from the instrument cluster via the CAN communication, it activates the turn and hazard indicator alarm simultaneously with the turning on/off of the turn signal/hazard warning indicator lights.

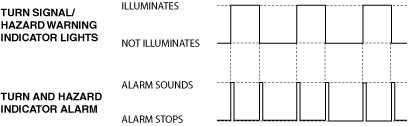

•  The turn and hazard indicator alarm is activated in the pattern shown in the figure.

Sound frequency (Hz)	Turn signal/hazard warning indicator lights turn off to on: 1,400 Turn signal/hazard warning indicator lights turn on to off: 1,300
Wave pattern

Structure/Construction

•  The turn and hazard indicator alarm is activated using the notification and warning speaker (front).

Operation

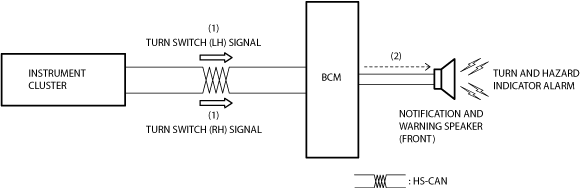

1.  When the body control module (BCM) receives (1) a turn switch signal via CAN communication from the instrument cluster, the body control module (BCM) sounds (2) the turn and hazard indicator alarm.

a30zzn00000721

Seat Belt Warning Alarm

Purpose

•  The seat belt warning alarm warns the driver that a seat belt is not fastened.

Functions

•  The instrument cluster controls the seat belt warning alarm based on the following signals.

Signal name	Sending module/part name	Communication method
Vehicle speed signal	Electronically controlled brake unit	HS-CAN
Driver's side buckle switch signal	Dash-electrical supply unit
Passenger's side buckle switch signal	Sophisticated airbag sensor (SAS) control module
Occupancy sensor signal
Rear buckle switch signal	ESU

•  The driver's side/passenger's side seat belt warning alarm has an initial warning and subsequent warning.

Initial warning

•  When all of the following conditions are met, the alarm sounds.

―  Vehicle speed is approx. 20 km/h {12 mph} or more

―  Driver's side/passenger's side buckle switch on signal (seat belt unfastened) is detected

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's seat belt warning alarm only)

•  The initial warning sounds in the pattern shown in the figure.

a30zzn00000722

Subsequent warning

•  When all of the following conditions are met, the alarm sounds.

―  Vehicle speed is approx. 20 km/h {12 mph} or more

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger seat belt warning alarm only)

―  After initial warning operates, buckle switch off signal (seat belt fastened) to on signal (seat belt unfastened) is detected

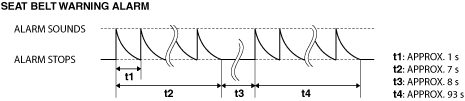

•  The subsequent warning sounds in the pattern shown in the figure.

a30zzn00000723

―  After rear buckle switch off signal (seat belt fastened) to rear buckle switch on signal (seat belt unfastened) is detected, vehicle speed of approx. 20 km/h {12 mph} or more is detected

―  Rear buckle switch off signal (seat belt fastened) to on signal (seat belt unfastened) is detected with vehicle speed of approx. 20 km/h {12 mph} or more detected

am6xun00005151

Structure/Construction

•  The seat belt warning alarm is activated using the notification and warning speaker (front).

Operation

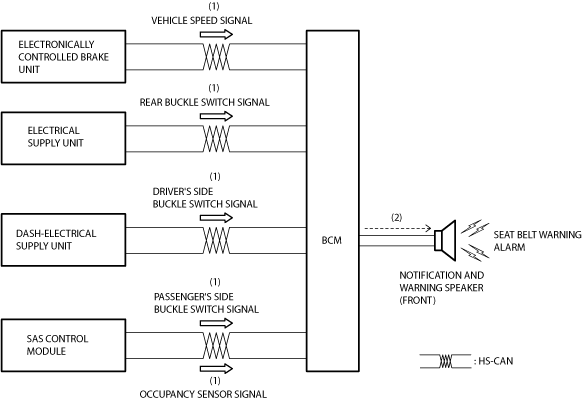

1.  When the body control module (BCM) receives (1) a vehicle speed signal from the electronically controlled brake unit, a rear buckle switch signal from the ESU, a driver's side buckle switch signal from the dash-electrical supply unit, passenger's side buckle switch signal and occupancy sensor signal from the sophisticated airbag sensor (SAS) control module via CAN communication, the body control module (BCM) sounds (2) the seat belt warning alarm.

a30zzn00002581

Panel Light Control Indicator Alarm

Purpose

•  The panel light control indicator alarm notifies the driver that the panel light brightness is either at maximum or minimum.

Functions

•  The body control module (BCM) activates the panel light control indicator alarm when the vehicle is under any of the following conditions.

―  With the main power switched ACC or OFF, a panel light maximum brightness signal and a TNS (parking lights) signal is received via CAN communication from the instrument cluster

―  With the main power switched ON (READY off or on), a panel light maximum brightness signal and a TNS (parking lights) signal is received via CAN communication from the instrument cluster (dimmer cancel)

―  A panel light minimum brightness signal and a TNS (parking lights) signal is received via CAN communication from the instrument cluster

•  The panel light control indicator alarm is activated in the pattern shown in the figure.

a30zzn00000725

Structure/Construction

•  The panel light control indicator alarm is activated using the notification and warning speaker (front).

Operation

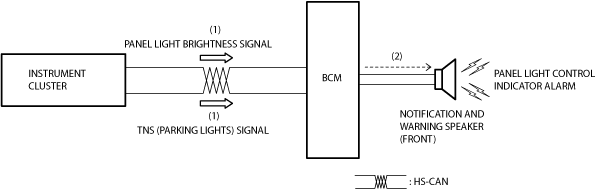

1.  When the vehicle is under any of the following conditions (1), the body control module (BCM) sounds (2) the panel light indicator alarm.

―  With the main power switched ACC or OFF, a panel light maximum brightness signal and a TNS (parking lights) signal is received via CAN communication from the instrument cluster

―  With the main power switched ON (READY off or on), a panel light maximum brightness signal and a TNS (parking lights) signal is received via CAN communication from the instrument cluster

―  A panel light minimum brightness signal and a TNS (parking lights) signal is received via CAN communication from the instrument cluster

a30zzn00000726
