ACTIVE AIR SHUTTER SYSTEM

id092300700000


Outline

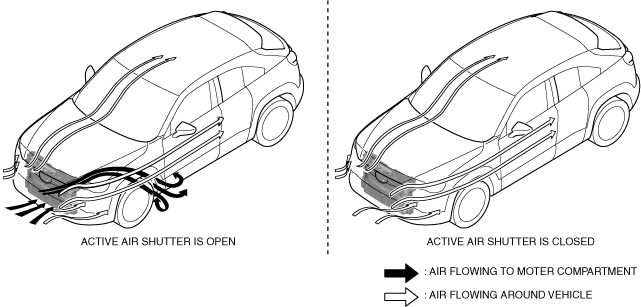

•  The active air shutter system controlled by the PCM reduces turbulent air*1 occurring around the vehicle which reduces air resistance. It does this by closing the active air shutter behind the front bumper mesh while the vehicle is being driven to control the air flowing into the motor compartment.
*1  :The air flowing into the motor compartment from the front bumper mesh while the vehicle is driven flows underneath the floor and the tire housings. The air flowing underneath the floor and tire housings collides with the air flowing around the vehicle and creates turbulence.
a30zzn00000772

Structural View

a30zzn00000773

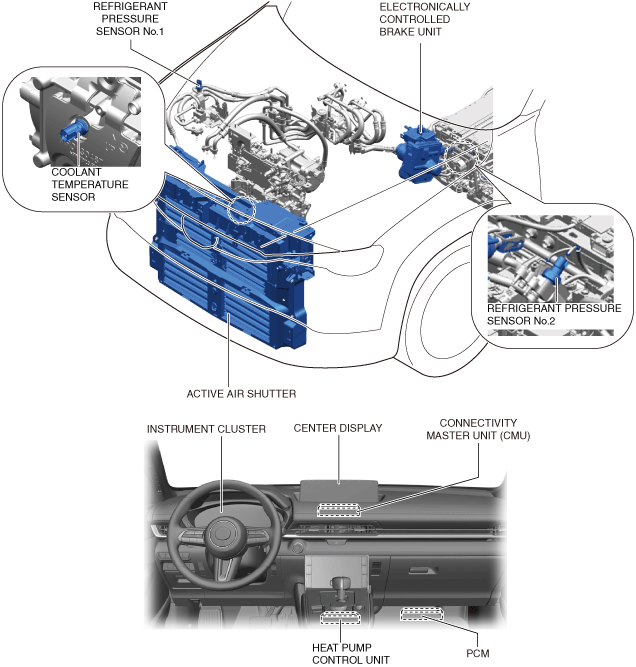

Component parts

Function
PCM
The PCM controls the actuator of the active air shutter according to the driving and motor conditions.
Active air shutter
The active air shutter opens/closes the shutter according to the request signal from the PCM.
Electronically controlled brake unit
The electronically controlled brake unit sends the vehicle speed signal to the PCM.
Heat pump control unit
The heat pump control unit sends the A/C operation signal to the PCM.
Coolant temperature sensor
Coolant temperature sensor detects the motor coolant temperature.
Refrigerant pressure sensor
The refrigerant pressure sensor detects the refrigerant pressure.
Instrument cluster
The instrument cluster turns on the master warning light when a system malfunction occurs.
Connectivity Master Unit
The connectivity master unit displays the warning screen in the center display based on the warning display request signal from the PCM.
Center display
The center display displays the warning screen when a system malfunction occurs.

•  For the active air shutter system control, refer to ACTIVE AIR SHUTTER CONTROL. (See ACTIVE AIR SHUTTER CONTROL.)
•  For details on the active air shutter, refer to ACTIVE AIR SHUTTER. (See ACTIVE AIR SHUTTER.)
