REAR SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008801200

Symbol Mark

a30zzb00000025

Removal Procedure

1.  Refer to [DAMAGED VEHICLE HANDLING] and [HIGH VOLTAGE SERVICE CAUTIONS] in the general information, implement the necessary measures, and then start the procedure.(See DAMAGED VEHICLE HANDLING [(E)].) (See HIGH VOLTAGE SERVICE CAUTIONS.)

2.  Remove the floor side panel No.1 and floor side panel No.2. (See FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT].)

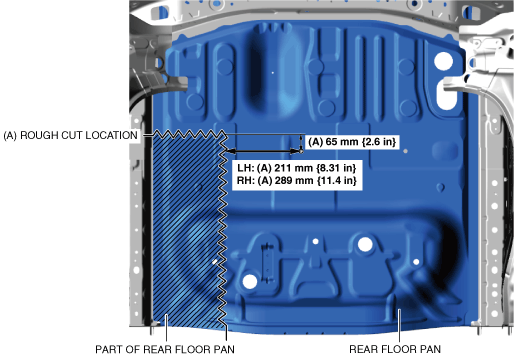

3.  Rough cut the location in area A shown in the figure.

Caution

•  Be careful not to damage crossmember No. 5 when rough cutting part A shown in the figure. Otherwise, the vehicle strength may become diminished.

a30zzb00000080

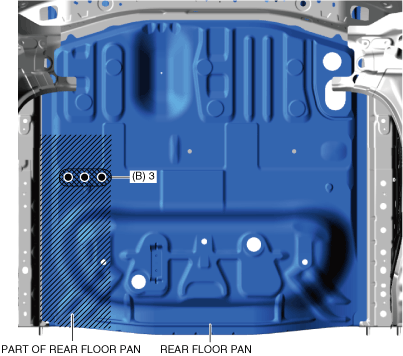

4.  Drill the spot welds in the 3 locations in area B shown in the figure.

a30zzb00000081

5.  Remove a part (shaded area) of the rear floor pan.

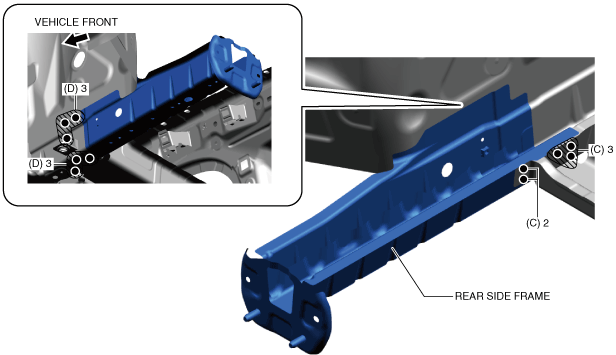

6.  Drill the spot welds in the 5 locations in area C shown in the figure.

7.  Drill the spot welds in the 6 locations in area D shown in the figure from the rear wheel housing.

a30zzb00000082

8.  Remove the rear side frame.
