360°VIEW MONITOR CONTROL MODULE
id151100004400
Purpose
• The 360°view monitor control module controls the front camera, side cameras (LH, RH), and the rear mount camera based on the input signals from each unit and the 360°view monitor switch.
Function
Camera display function
-
• The 360°view monitor control module calculates the top view image based on the video signals from each camera, and sends a video signal to the connectivity master unit (CMU).
Top view/front view, top view/front wide view, side view off-timer function
-
• If a maximum of 270 s have elapsed since the display of the top view/front view, the top view/front wide view, and the side view screen, the 360°view monitor control module sends a video display cancel signal to the connectivity master unit (CMU).
Construction

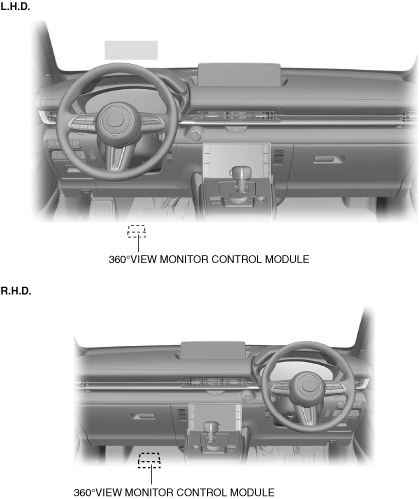

• The 360°view monitor control module is located under the driver-side floor covering.
Operation
• For the 360°view monitor control module operation, refer to [360°VIEW MONITOR SYSTEM]. (See
360°VIEW MONITOR SYSTEM.)
