360°VIEW MONITOR SYSTEM CAMERA

id151100006300

Purpose

Front camera

• The front camera assures visibility at the vehicle front.

Side camera

• The side cameras assure visibility at the sides of the vehicle.

Rear mount camera

• The rear mount camera assures visibility at the vehicle rear where direct, visual verification from the driver’s seat is not possible.

Function

• Sends a video signal to the 360° view monitor control module.

Construction

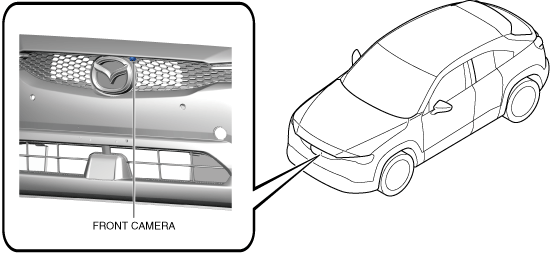

Front camera

• The front camera is located in the radiator grille.

a30zzn00002284

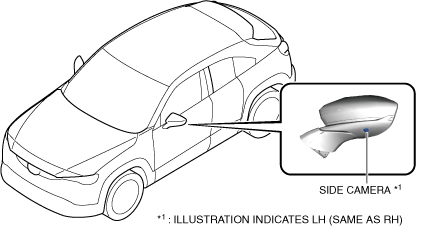

Side camera

• The side cameras are located on the outer mirrors.

a30zzn00002282

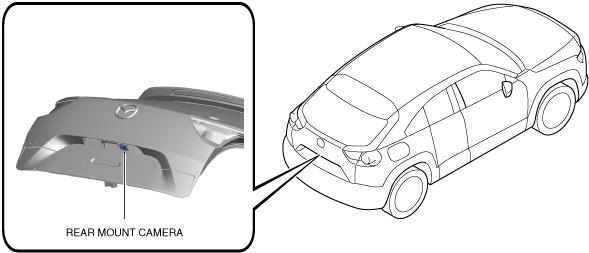

Rear mount camera

• The rear mount camera is located on the liftgate.

atsuzn00001296

Operation

• For the 360° view monitor system camera operation, refer to [360° VIEW MONITOR SYSTEM]. (See 360°VIEW MONITOR SYSTEM.)
