DRIVER MONITORING CAMERA UNIT INSPECTION

id152000021300

1. Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the driver monitoring camera unit.(See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].)

3. Connect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference). (See Terminal Voltage Table (Reference).)

• If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

― If the system does not work normally even though the inspection items are normal, identify the malfunctioning location according to the directions in [DIAGNOSTIC SYSTEM] and [SYMPTOM TROUBLESHOOTING] then perform repairs.

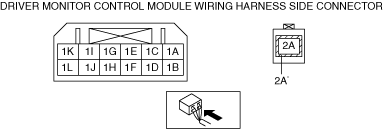

am3zzw00032524

Terminal Voltage Table (Reference)

Terminal

Signal

Connected to

Measurement condition

Voltage(V)

Inspection item(s)

1A

—

—

—

—

—

1B

PWR_ADAS

Body control module (BCM)

Under any condition

B+

•  Body control module (BCM)

•  F22A fuse

•  MAIN 200A fuse

•  Related wiring harness

1C

—

—

—

—

—

1D

GND

Body ground

Under any condition

Approx. 0

•  GND point

•  Related wiring harness

1E

ADAS CAN H

Body control module (BCM)

Terminal used for communication therefore determination based on terminal voltage is not possible.

1F

ADAS CAN H

Body control module (BCM)

Terminal used for communication therefore determination based on terminal voltage is not possible.

1G

—

—

—

—

—

1H

—

—

—

—

—

1I

LED_FLASH

Driver monitoring camera LED

Under any condition

5.0 or less

•  Driver monitoring camera LED

•  Related wiring harness

1J

LED_VDET

Driver monitoring camera LED

Under any condition

5.0 or less

•  Driver monitoring camera LED

•  Related wiring harness

1K

LED_PWR

Driver monitoring camera LED

Under any condition

B+

•  Driver monitoring camera LED

•  Related wiring harness

1L

LED_GND

Driver monitoring camera LED

Under any condition

1.0 or less

•  Driver monitoring camera LED

•  Related wiring harness

2A

LVDS

Driver monitoring camera

Under any condition

5.0

•  Driver monitoring camera

•  Related wiring harness

2A’

GND_LVDS

Driver monitoring camera

Under any condition

1.0 or less

•  Driver monitoring camera

•  Related wiring harness

Terminal	Signal	Connected to	Measurement condition	Voltage(V)	Inspection item(s)
1A	—	—	—	—	—
1B	PWR_ADAS	Body control module (BCM)	Under any condition	B+	• Body control module (BCM) • F22A fuse • MAIN 200A fuse • Related wiring harness
1C	—	—	—	—	—
1D	GND	Body ground	Under any condition	Approx. 0	• GND point • Related wiring harness
1E	ADAS CAN H	Body control module (BCM)	Terminal used for communication therefore determination based on terminal voltage is not possible.
1F	ADAS CAN H	Body control module (BCM)	Terminal used for communication therefore determination based on terminal voltage is not possible.
1G	—	—	—	—	—
1H	—	—	—	—	—
1I	LED_FLASH	Driver monitoring camera LED	Under any condition	5.0 or less	• Driver monitoring camera LED • Related wiring harness
1J	LED_VDET	Driver monitoring camera LED	Under any condition	5.0 or less	• Driver monitoring camera LED • Related wiring harness
1K	LED_PWR	Driver monitoring camera LED	Under any condition	B+	• Driver monitoring camera LED • Related wiring harness
1L	LED_GND	Driver monitoring camera LED	Under any condition	1.0 or less	• Driver monitoring camera LED • Related wiring harness
2A	LVDS	Driver monitoring camera	Under any condition	5.0	• Driver monitoring camera • Related wiring harness
2A’	GND_LVDS	Driver monitoring camera	Under any condition	1.0 or less	• Driver monitoring camera • Related wiring harness
