SERVICE PLUG


id304100100800


Purpose, Function

•  The service plug assures safety during inspection/maintenance of high voltage parts by the worker removing the service plug to physically cut off the high voltage circuit and decrease the voltage.

Construction, Operation

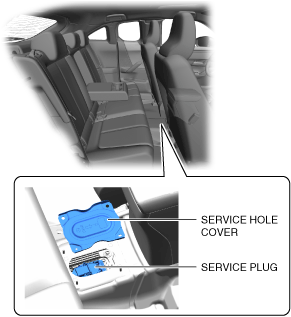

•  The service plug can be accessed by opening the service hole cover from the foot well of the rear seat in the vehicle.
a30zzn00001018

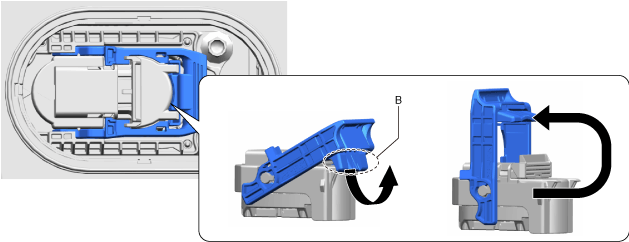

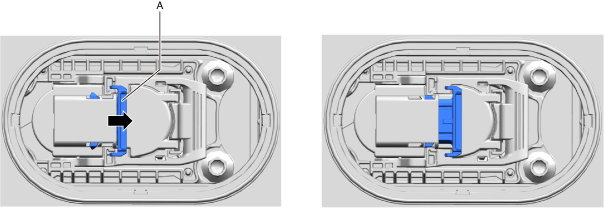

•  The service plug has a tab that restricts the movement of the lever when lock part A shown in the figure is slid in the direction of the arrow and the lever is pulled up to position B.The service plug can be removed by releasing this restriction and lifting the lever to the vertical position.
a30zzn00001159
a30zzn00001160
•  The service plug is installed between high voltage battery module No.8 and module No.9 circuits.
•  The service plug has an interlock function.
If a worker accidentally cuts off the service plug when the main power is switched ON (READY off), the PCM cuts off the high voltage circuit by turning off the high voltage contactor.
For details on the interlock mechanism, refer to the [INTERLOCK SWITCH]. (See INTERLOCK SWITCH.)
