CHARGE INDICATOR INSPECTION

id304200000300

1.  Disconnect the negative lead-acid battery terminal.

(See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the charge port-electrical supply unit connector.

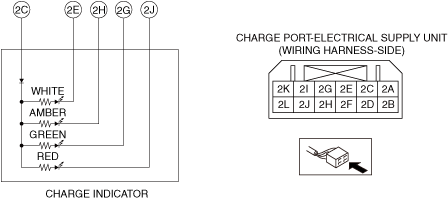

3.  Connect the lead-acid battery voltage and the ground to each terminal of the charge port-electrical supply unit (wiring harness-side) as indicated in the table below and verify that each light turns on normally.

a30zzw00004703

Terminal B+

Ground terminal

Status

Red

White

Amber

Green
2C
2J
ON
OFF
OFF
OFF
2E
OFF
ON
OFF
OFF
2H
OFF
OFF
ON
OFF
2G
OFF
OFF
OFF
ON

•  If each light does not turn on normally, replace the charge lid box assembly. (See CHARGE LID BOX ASSEMBLY REMOVAL/INSTALLATION.)
