CHARGE LID LOCK ACTUATOR INSPECTION

id304200001200

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the charge port-electrical supply unit connector.

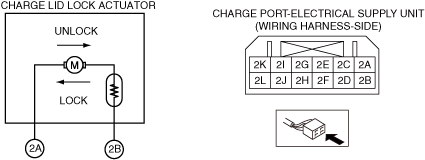

3.  Apply lead-acid battery positive voltage and connect the ground to the charge port-electrical supply unit (wiring harness-side) terminals as indicated in the table below and verify the operation condition.

a30zzw00004708

B+ terminal	Ground terminal	Operation
2A	2B	Unlock
2B	2A	Lock

•  If not as indicated in the table, replace the charge lid box assembly.

(See CHARGE LID BOX ASSEMBLY REMOVAL/INSTALLATION.)
