JACKING POSITIONS, VEHICLE LIFT AND SAFETY STAND (RIGID RACK) POSITIONS

id000000702700

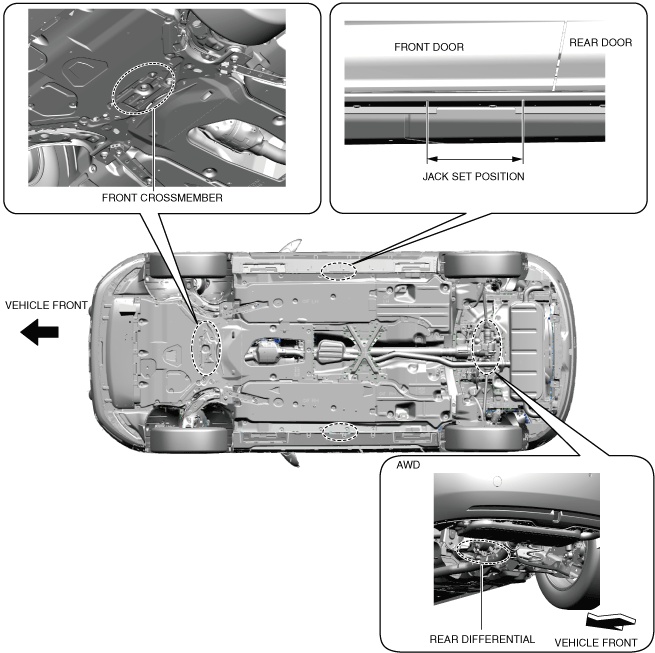

Vehicle support positions when using a garage jack

• The positions where the vehicle is supported by the garage jack when jacking up are shown in the figure below.

Caution

• When jacking up, refer to the jack up procedure. (See JACK UP PROCEDURE.)

a30zzw00006068

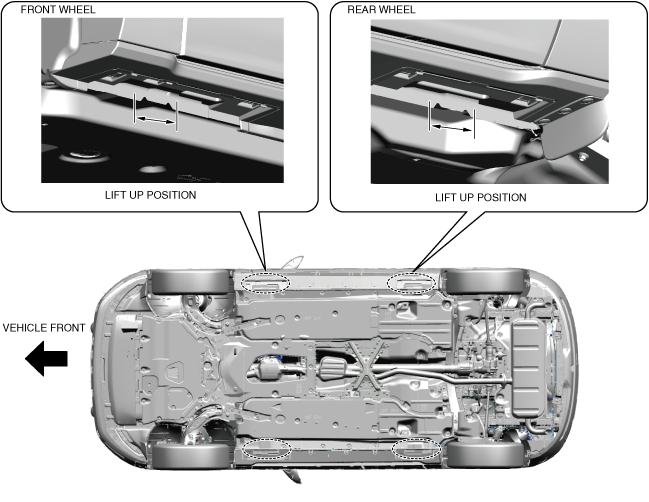

Vehicle support position when using auto-lift or safety stand (rigid rack) installation position

• The following positions are shown in the figure below.

― Positions where the vehicle is supported by the auto lift when jacking up

― Safety stand (rigid rack) installation position

Warning

• If the vehicle is not stabilized while on the lift, it could fall off while it is being lifted or during servicing, leading to serious injury or death, and vehicle damage. Before lifting up, verify that the vehicle is level and stable.

a30zzw00006069
