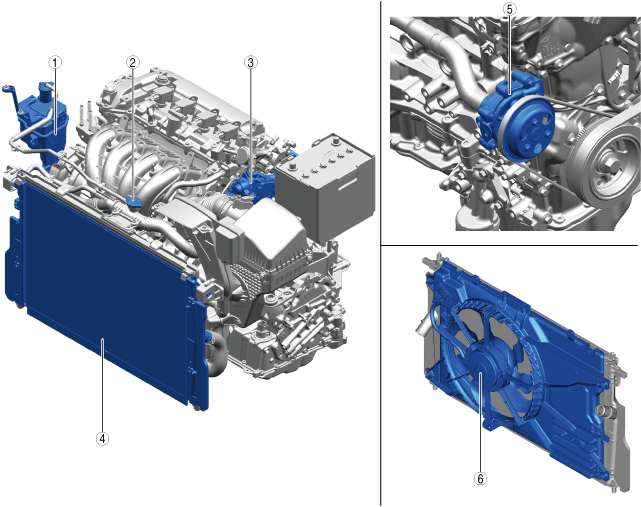

COOLING SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0112h4800100

a30jjw00001193

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G 2.0].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G 2.0].)
3	Coolant control valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G 2.0].)
4	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G 2.0].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
6	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.0].)
