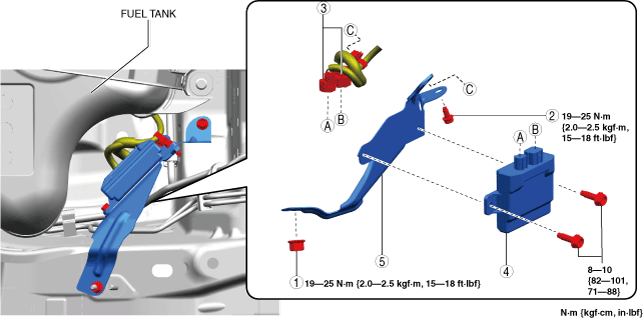

a30zzw00005597
FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.0]
id0114z5953100
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the floor under cover No.1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
a30zzw00005597
|
|
1
|
Fuel pump control module bracket installation bolt
|
|
2
|
Fuel pump control module bracket installation nut
|
|
3
|
Fuel pump control module connector
|
|
4
|
Fuel pump control module
|
|
5
|
Fuel pump control module bracket
|
