EMISSION SYSTEM [SKYACTIV-G 2.0]


id0116z8110100


Outline

•  A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

Structural View

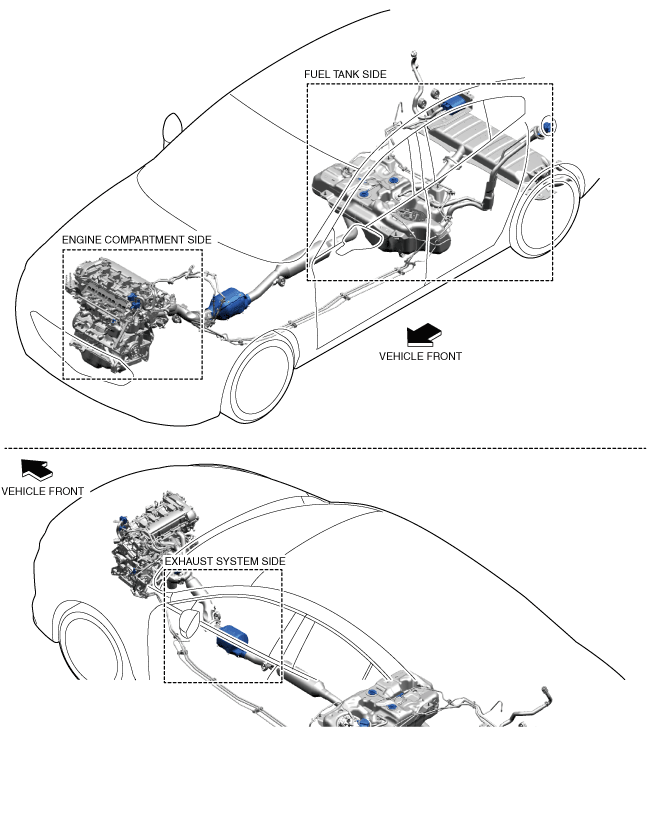

a30zzn00001327

Engine compartment side

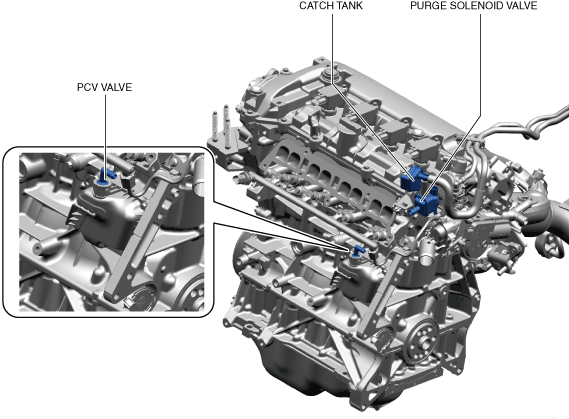

a30zzn00001328


Exhaust system side

2WD

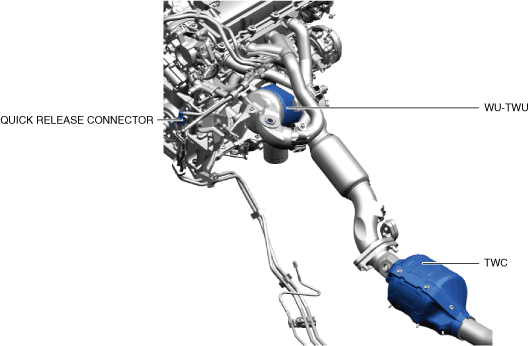

a30zzn00001329

AWD

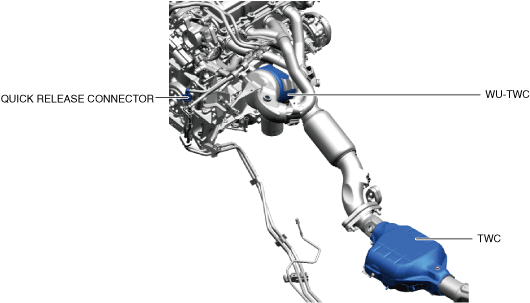

a30zzn00001330


Fuel tank side

2WD

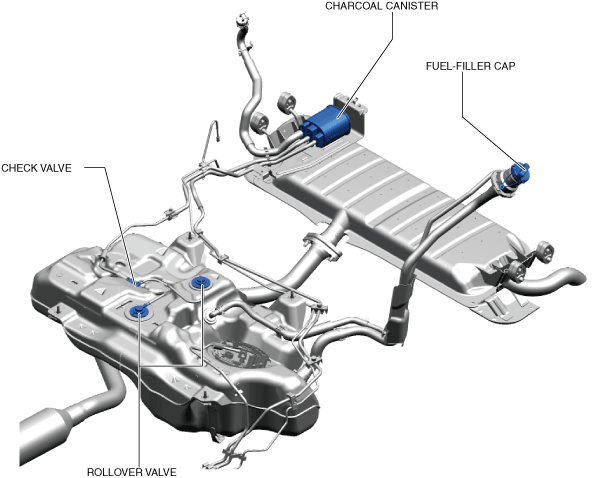

a30zzn00001331

AWD

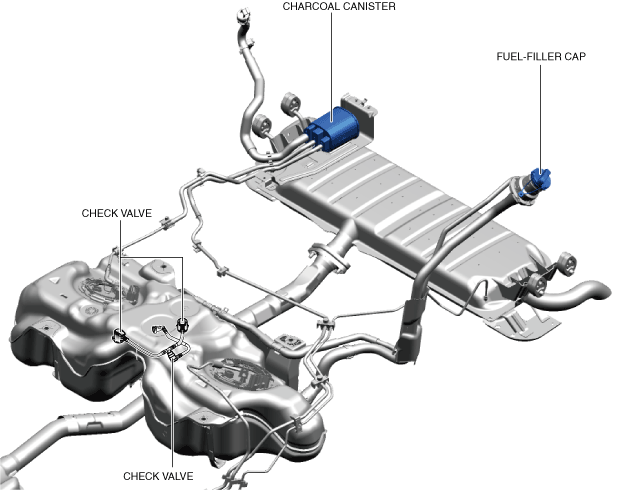

a30zzn00001332

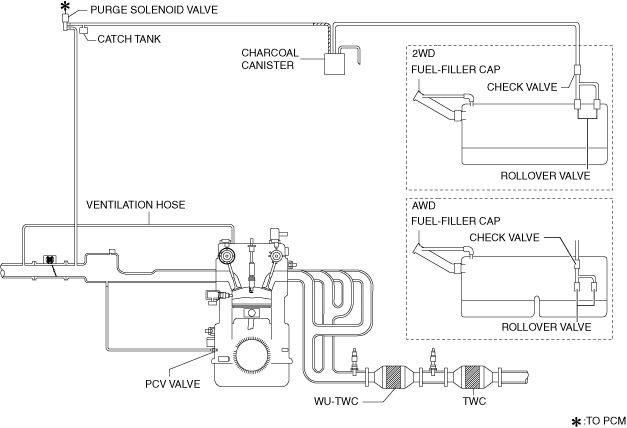

System Diagram

a30zzn00001333

Structure

•  The emission system consists of the following parts:

Part/System name

Reference

Exhaust gas purification system
Catalytic converter
Positive crankcase ventilation system
PCV valve
Evaporative emission control system
Purge solenoid valve
Catch tank
Charcoal canister
Rollover valve
Check valve


Specification

Item

Specification

Catalyst form
WU-TWC (monolith)
TWC (monolith)
EVAP control system
Charcoal canister type
PCV system
Closed type
