DRIVE SELECTION SWITCH INSPECTION

id012100100100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION)

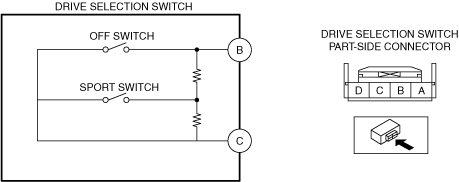

3.  Measure the resistance between drive selection switch terminals B and C using a tester.

•  If not within the specification, replace the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION.)

am3zzw00036834

Switch condition	Resistance (ohm)
OFF switch held at on	Approx. 0
SPORT switch held at on	Approx. 470
any switch not pressed	Approx. 2,670
