DRIVE SELECTION SWITCH REMOVAL/INSTALLATION

id012100954600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

3.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

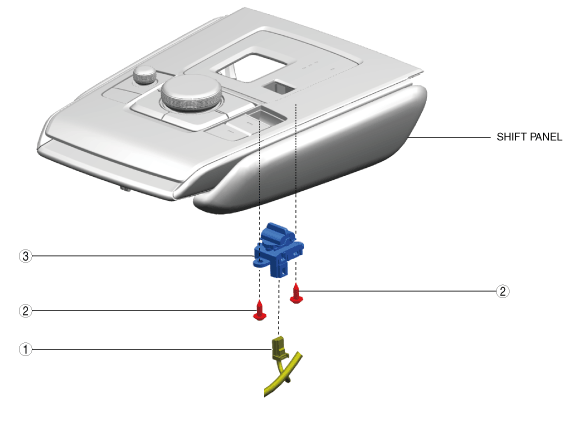

a30zzw00006101

1	Drive selection switch connector
2	Screw
3	Drive selection switch
