OIL SEAL (COUPLING COMPONENT) REPLACEMENT

id031400700900

Special Service Tool (SST)

49 W034 201   Dust boot installer

1.  Drain the differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT.)

2.  Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

3.  Remove the oil seal from the differential carrier using a flathead screwdriver or similar tool.

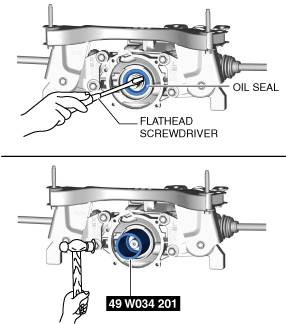

ac30zw00000489

4.  Apply differential oil to the new oil seal lip.

5.  Install the new oil seal to the differential carrier using the SST.

Note

•  Install the oil seal at a straight angle.

6.  Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

7.  Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT.)
