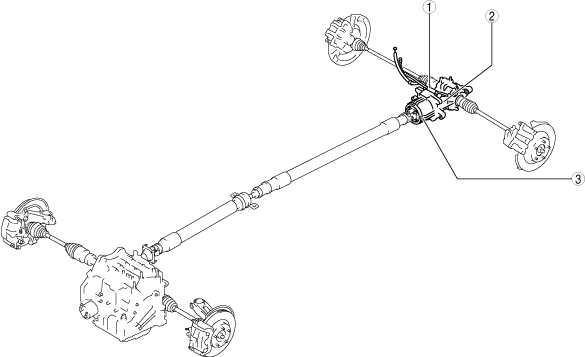

i-ACTIV AWD SYSTEM LOCATION INDEX

id031900000200

ac30zw00001984

1	AWD solenoid (See AWD SOLENOID INSPECTION.)
2	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION.) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
3	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION.) (See COUPLING COMPONENT TEMPERATURE SENSOR INSPECTION.) (See COUPLING COMPONENT CALIBRATION DATA WRITING.)
