VENTILATION SYSTEM

id071100700100

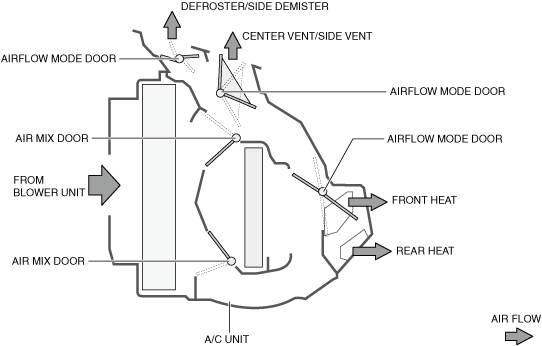

Outline

Function

•  The ventilation system adjusts the air vent mode by changing the position of the mode door.

a30zzn00001625

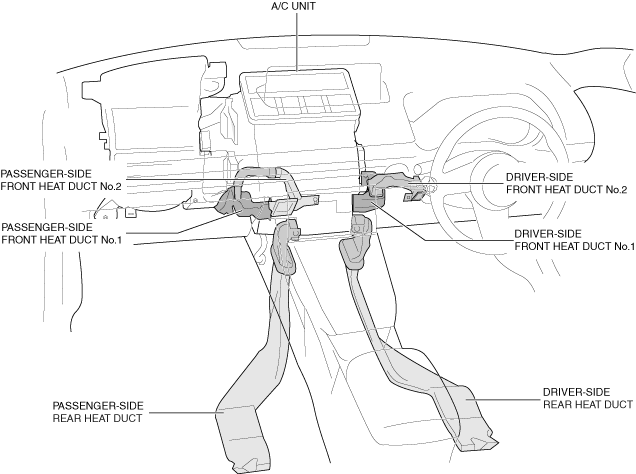

Structural View

a30zzn00001626

Operation

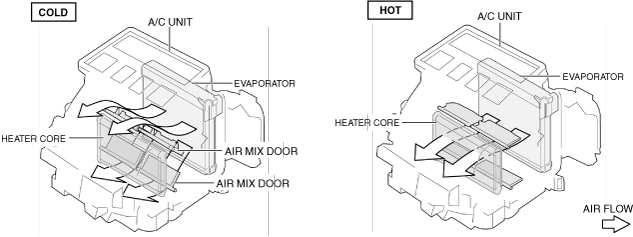

Air mix door

1.  The air mix actuator operates according to the airflow temperature control of the climate control unit.

2.  The air mix door moves in the COLD or HOT direction according to the operation of the air mix actuator.

3.  The airflow volume blowing from the evaporator to the heater core changes by the movement of the air mix door, and the temperature of the air which passes is adjusted.

a30zzn00001627

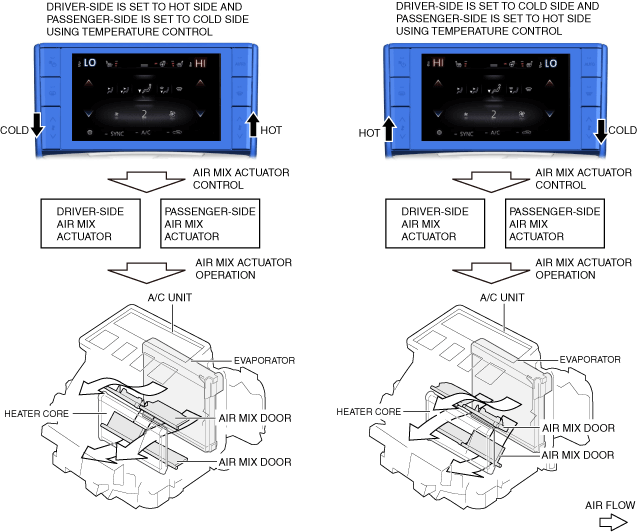

Dual mode (full-auto air conditioner)

1.  When the DUAL mode is ON, the driver and passenger-side air mix actuators operate independently according to the temperature control dial operation or the automatic control of the climate control unit.

2.  The driver and passenger-side air mix doors move independently according to the air mix actuator operation.

a30zzn00001628

•  For the DUAL mode, refer to the [CLIMATE CONTROL UNIT]. (See CLIMATE CONTROL UNIT.)

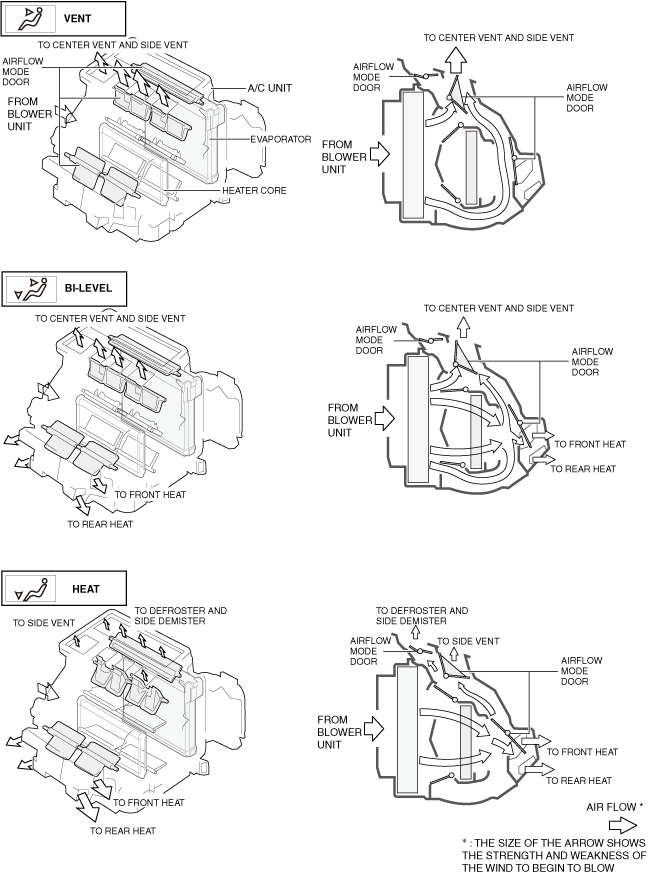

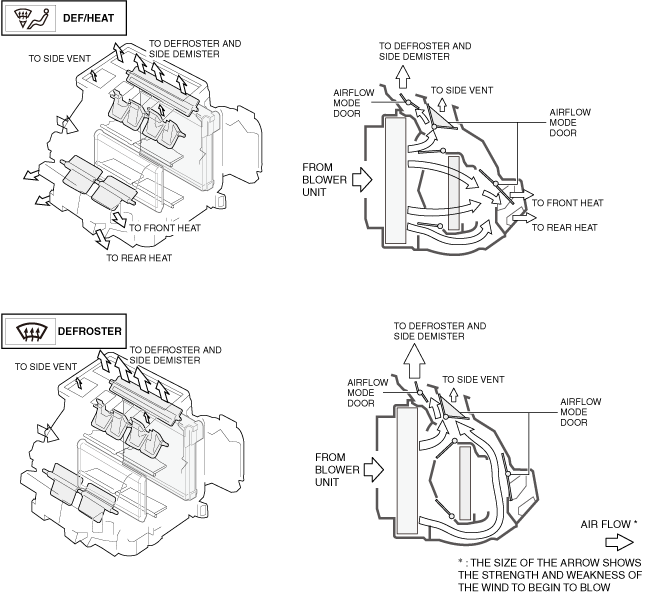

Airflow mode door

1.  The airflow mode actuator operates according to the airflow mode control of the climate control unit.

2.  The mode main link operates according to the mode actuator operation.

3.  The airflow mode door moves in the VENT, BI-LEVEL, HEAT, DEF/HEAT, or DEFROSTER direction according to the airflow mode main link. The air vent changes by the movement of the airflow mode door.

a30zzn00001632

a30zzn00001633

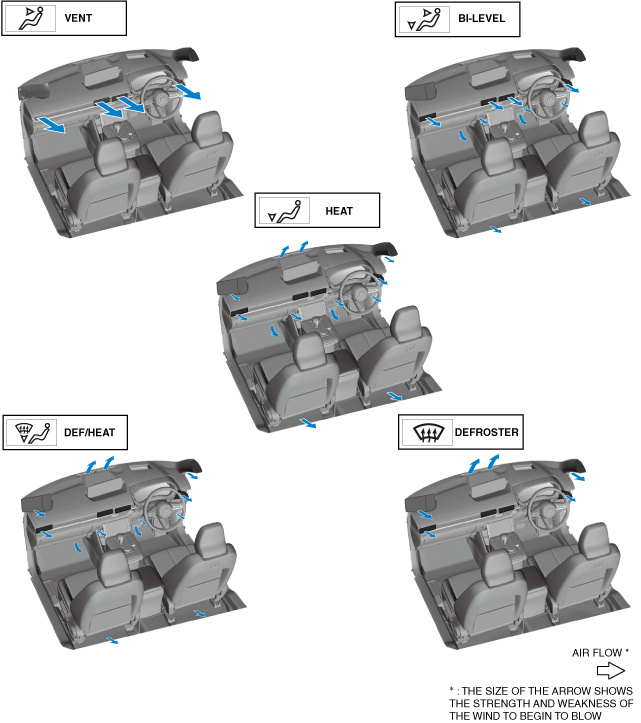

•  The airflow distributed by the mode door passes through the duct and flows from each air vent shown in the figure to the cabin.

a30zzn00001631
