REFRIGERANT PRESSURE SENSOR No.2 REMOVAL/INSTALLATION

id074000704800

Note

•  The refrigerant pressure sensor No.2 is located in the cooler hose (HI).

Replacement Part

Oil and chemical type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

4.  Remove the cooler hose (HI). (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

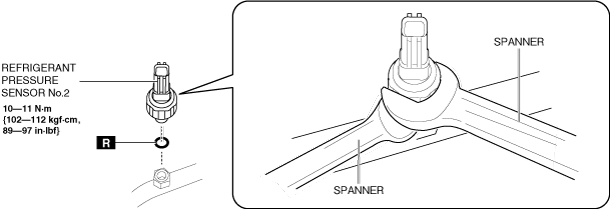

5.  Loosen the refrigerant pressure sensor No.2 using two spanners.

a30zzw00006365

Caution

•  If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

6.  Remove the refrigerant pressure sensor. (See Refrigerant pressure sensor installation note.)

7.  Install in the reverse order of removal.

8.  Charge the refrigerant. (See REFRIGERANT CHARGING.)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Refrigerant pressure sensor installation note

1.  Apply compressor oil to the O-rings and connect the joints.
