PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1702100

Warning

•  Handling the passenger-side air bag module improperly can activate (deploy) the air bag module unexpectedly, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the passenger-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

•  The SRS air bag system can be identified by whether or not the seat track position sensor is present.

―  Standard deployment control system: Without seat track position sensor

―  Two-step deployment control system: With seat track position sensor

•  When replacing the passenger-side air bag module after the deployment, replace it together with the mid-wiring harness. (See Mid-Wiring Harness Removal/Installation Note.)

1.  Switch the ignition OFF.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the glove compartment. (GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

4.  Remove the clips.

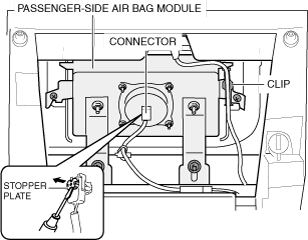

a30zzw00002886

5.  Pull out the connector stopper plate using a flathead screwdriver.

6.  Disconnect the passenger-side air bag module connector.

7.  Remove the dip.

a30zzw00002887

8.  Remove the screws.

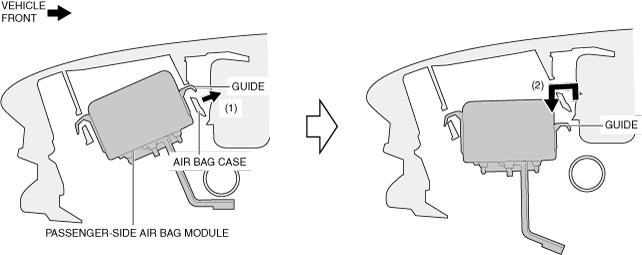

9.  Spread out the air bag case in the direction of arrow (1) shown in the figure, move the passenger-side air bag module in the direction of arrow (2), and detach the guide from the air bag case.

a30zzw00002888

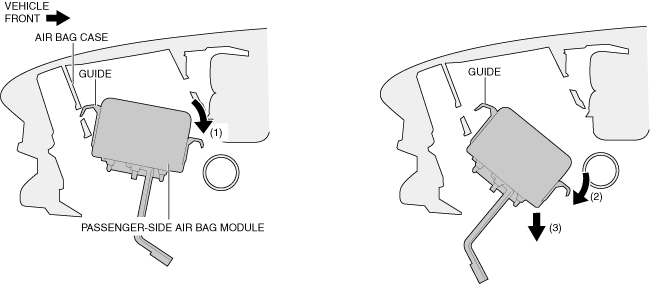

10.  Move the passenger-side air bag module in the order of arrows (1) and (2) shown in the figure to detach the guide from the air bag case.

a30zzw00002889

11.  Move the passenger-side air bag module in the direction of arrow (3) shown in the figure to detach hook B from the passenger-side air bag module cover.

12.  Install in the reverse order of removal.

13.  Switch the ignition ON (engine off or on).

14.  Verify that the air bag/seat belt pre-tensioner system warning light turns on for approx. 6 s and turns off.

•  If the air bag/pre-tensioner warning light does not work properly, verify the DTCs. (See DTC INSPECTION.)

Mid-Wiring Harness Removal/Installation Note

1.  Pull out the mid-wiring harness connector lock lever in the direction of arrow (1) shown in the figure.

a30zzw00002890

2.  Move the mid-wiring harness connector in the direction of arrow (2) shown in the figure to disconnect it.

3.  Remove clips A and B.
