SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1703000

Warning

•  Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling a front seat with a side air bag. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

•  The SRS air bag system can be identified by whether or not the seat track position sensor is present.

―  Standard deployment control system: Without seat track position sensor

―  Two-step deployment control system: With seat track position sensor

1.  Switch the ignition OFF.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

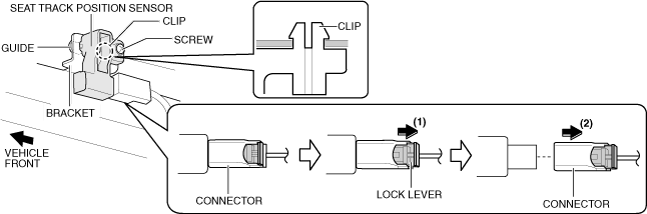

3.  Pull out the connector lock lever in the direction of arrow (1) shown in the figure.

a30zzw00002907

4.  Move the connector in the direction of arrow (2) shown in the figure to disconnect it.

5.  Remove the screws.

6.  Detach the tab of the seat track position sensor from the bracket.

7.  Pull out the guide from the bracket and remove the seat track position sensor.

8.  Install in the reverse order of removal.

9.  Switch the ignition ON (engine off or on).

10.  Verify that the air bag/seat belt pre-tensioner system warning light turns on for approx. 6 s and turns off.

•  If the air bag/pre-tensioner warning light does not work properly, verify the DTCs. (See DTC INSPECTION.)
