POWER WINDOW SUBSWITCH INSPECTION
id091200703000
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

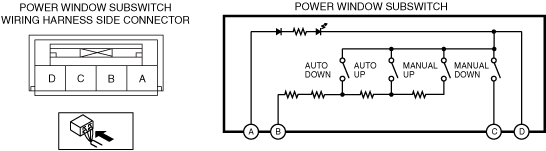

3. Verify that the resistance between power window subswitch terminals B and D is as indicated in the table.
am3zzw00027187
|
|
Switch Position |
Resistance (ohm) |
Terminal |
|---|---|---|
|
Auto Down
|
445.5—454.5
|
B—D
|
|
Auto Up
|
683.1—696.9
|
|
|
Manual Up
|
1069.2—1090.8
|

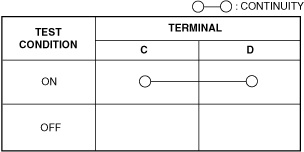

4. Verify that the continuity between the power window subswitch terminals is as indicated in the table.
a30zzw00005464
|
Power Window Subswitch Illumination Inspection
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3. Apply battery voltage to power window subswitch terminal A, and connect terminal D to ground.
am3zzw00027187
|
|
B+ Terminal |
Ground Terminal |
Operation |
|---|---|---|
|
A
|
D
|
LED Turn On
|
4. Verify that the LED is turned on.
