POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION

id091300202400

Warning

•  Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling a seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the driver's front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Switch the ignition off.

3.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

5.  Remove the driver's front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

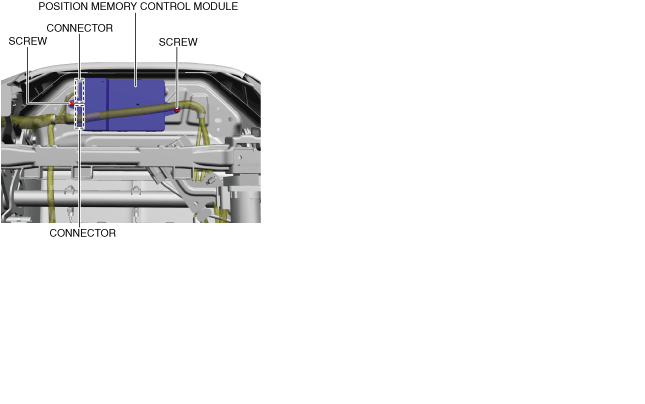

6.  Disconnect the position memory control module connectors.

a30zzw00006511

7.  Remove the screws and the position memory control module.

8.  Install in the reverse order of removal.
