REAR SEAT BACK STRIKER REMOVAL/INSTALLATION

id091300301800

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Operate the recliner knob to fold the rear seat back.

4.  Remove the following parts.

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Rear trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Front trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

5.  When removing the rear seat back (LH), perform the following procedure.

(1)  Remove the rear buckle (LH). (See REAR BUCKLE REMOVAL/INSTALLATION.)

(2)  Remove the rear center seat belt anchor. (See REAR SEAT BELT REMOVAL/INSTALLATION.)

6.  Remove the following parts.

(1)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

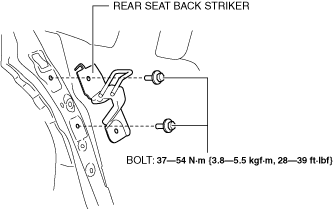

7.  Remove the bolts and the rear seat back striker.

a30zzw00002194

8.  Install in the reverse order of removal.
