SEAT WARMER UNIT INSPECTION

id091300700200

Note

•  When the seat warmer switch is turned on with the ignition switched ON (engine on), the seat warmer system operates.

Simple Inspection

1.  Place a cooling agent on the seat cushion (thermistor).

a30zzw00000937

2.  Operate the seat warmer switch to turn on the seat warmer.

3.  Touch the seat cushion and the seat back to verify a temperature increase.

4.  If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection.)

Resistance Inspection

Driver-side

Front seat cushion

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the driver-side seat warmer unit connector.

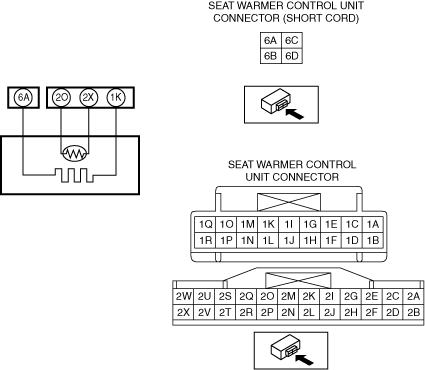

4.  Inspect for continuity between the driver-side seat warmer unit connector terminal 6A—1K.

a30zzw00006292

a30zzw00006293

―  If not as indicated in the table, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

5.  Measure the resistance between the driver-side seat warmer unit connector terminals 2O and 2X, and verify that the condition is as indicated in the table.

a30zzw00000940

•  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

Front seat back

1.  Switch the ignition off.

2.  Disconnect the battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the driver-side seat warmer unit connector.

4.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A—B.

a30zzw00000941

a30zzw00000942

―  If not as indicated in the table, replace the front seat back pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)

Passenger-side

Front seat cushion

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the passenger-side seat warmer unit connector.

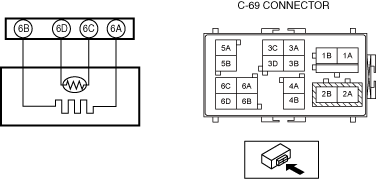

4.  Inspect for continuity between the passenger-side seat warmer unit connector terminal 6A—6B.

a30zzw00006387

a30zzw00006294

―  If not as indicated in the table, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

5.  Measure the resistance between the passenger-side seat warmer unit connector terminals 6C and 6D, and verify that the condition is as indicated in the table.

a30zzw00000940

•  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

Front seat back

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the passenger-side seat warmer unit connector.

4.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A—B.

a30zzw00000945

a30zzw00000941

―  If not as indicated in the table, replace the front seat back pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)
