WALK IN SWITCH INSPECTION

id091300701200

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the walk in switch. (See WALK IN SWITCH REMOVAL/INSTALLATION.)

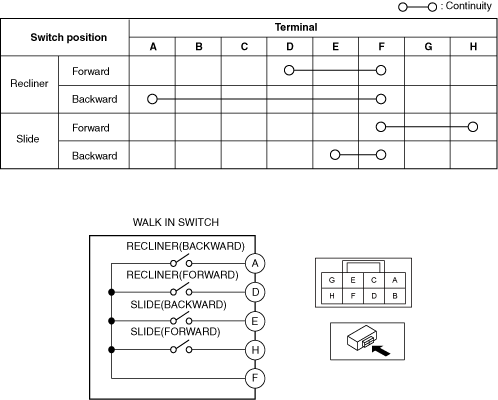

4.  Verify that the continuity between the walk in switch terminals is as indicated in the table.

•  If the continuity is not as indicated in the table, replace the walk in switch. (See WALK IN SWITCH REMOVAL/INSTALLATION.)

a30zzw00002405
