REAR DRAIN HOSE REMOVAL/INSTALLATION

id091500700200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(2)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(11)  Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION.)

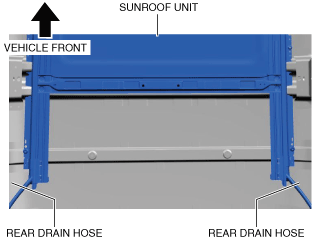

3.  Disconnect the rear drain hose from the sunroof unit.

a30zzw00000023

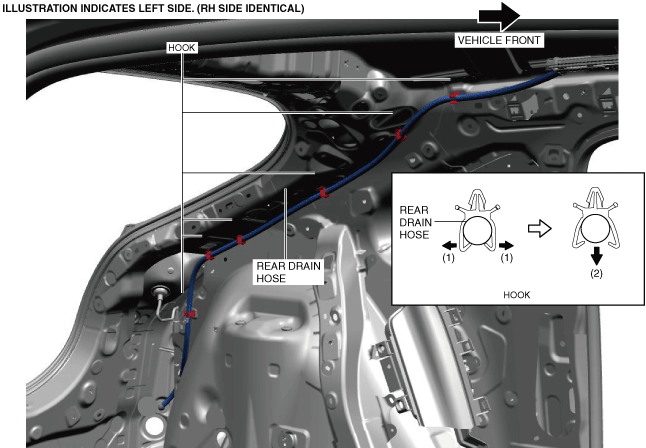

4.  Spread the hooks in the direction of arrows (1) shown in the figure, move the rear drain hose in the direction of arrow (2), and then remove it from the hooks.

a30zzw00000024

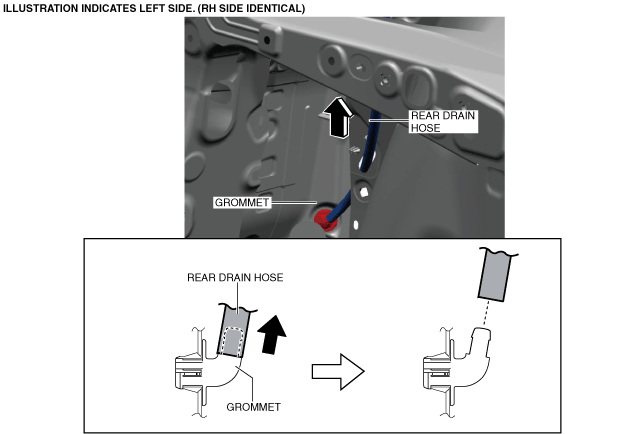

5.  Move the rear drain hose in the direction of the arrow shown in the figure and remove it from the grommet.

a30zzw00000025

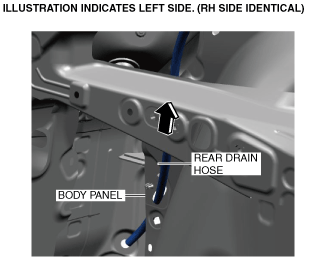

6.  Move the rear drain hose in the direction of the arrow shown in the figure and remove it from the body panel.

a30zzw00000026

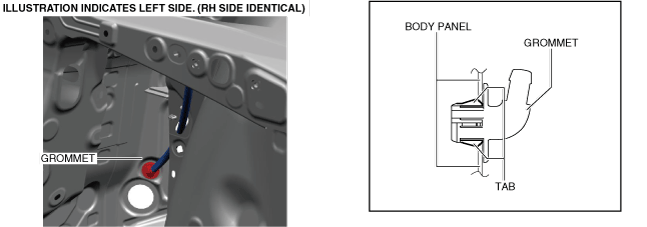

7.  Detach the tabs from the body panel using a tape-wrapped flathead screwdriver.

a30zzw00000027

8.  Remove the grommet.

9.  Install in the reverse order of removal.
