REAR CONSOLE REMOVAL/INSTALLATION

id091700049300

1.  Remove the select lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

4.  Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION.)

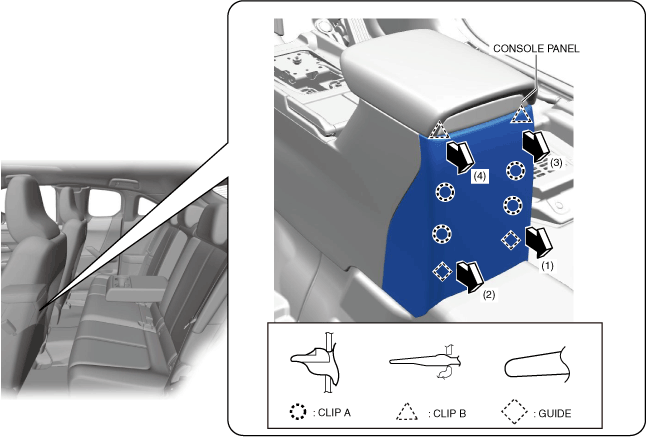

5.  Move the console panel in the order of arrows (1), (2), (3), and (4) shown in the figure and remove clips A, clips B, and the guides.

a30zzw00006172

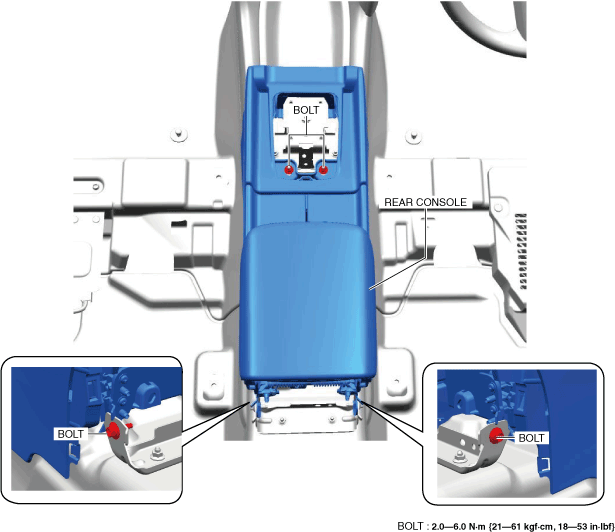

6.  Remove the bolts.

a30zzw00006173

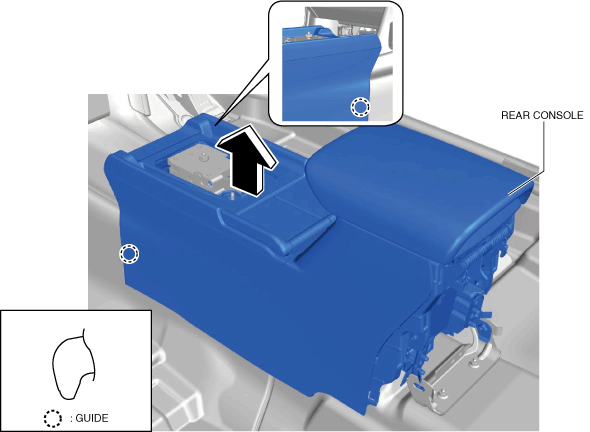

7.  Move the rear console in the direction of the arrow shown in the figure and detach the guides from the front console.

a30zzw00006174

8.  Remove the rear console.

9.  Install in the reverse order of removal.
