HEEL CUSHION REMOVAL/INSTALLATION

id091700052300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(4)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Partially peel back the front floor covering.

4.  Remove the fastener.

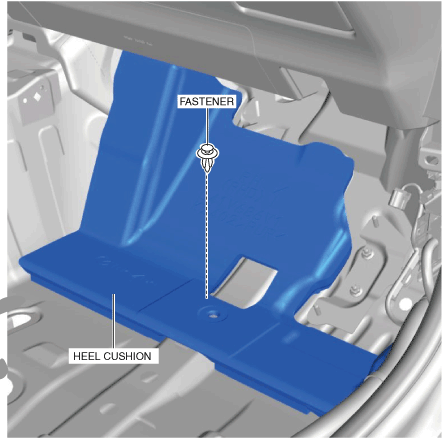

a30zzw00005814

5.  Remove the hell cushion.

6.  Install in the reverse order of removal.
